Galaxy DX Radios DX45MP
Documentation Project

CBTricks.com

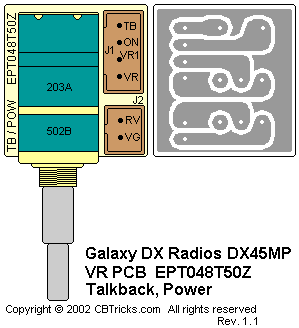

VR PCB (EPT048T50Z)

Ref#
Description
MFR. Part No.

VR P.C.B. Complete with Components

#T-141Q-P05

VR P.C.B. 17x16x1.6tmm(S)

EPT048T50Z

Connectors

Ref#
Description
MFR. Part No.

J1

PCB CONNECTOR/S 4P PH=2MM

EX07N48490

J2

PCB CONNECTOR/S 2P PH=2MM

EX07N48223

Pots

Ref#
Description
MFR. Part No.

TB&PWR

VR 20KB/5KB

RV20303560
