Galaxy
DX Radios DX48T
Documentation Project
CBTricks.com
Display / Switch PCB
(EPT048T31Z)

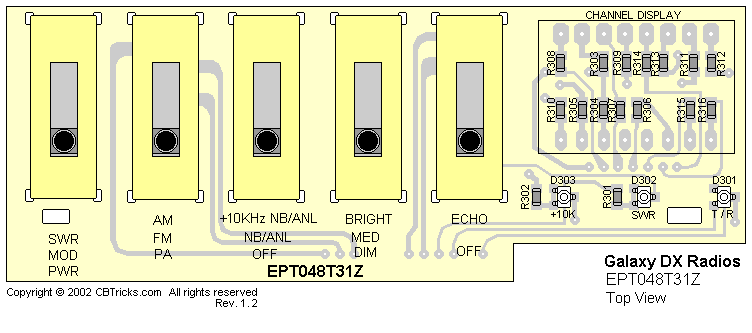

Trace Layouts
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R301 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R302 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R303 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R304 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R305 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R306 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R307 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R308 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R309 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R310 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R311 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R312 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R313 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R314 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R315 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
R316 |
CHIP/F/R (S.M.D) 1K OHM 0.1W(0805) |
RCY011024Z |
LED's
Ref#
|
Description |
MFR.
Part No.
|
T/R |
LED LAMPS (S.M.D.) KM-23ESGC RED/GREEN |
EX01Y40114 |
SWR |
LED LAMPS(SMD) KM-23IT(RED) |
EX01Y40116 |
+10K |
LED LAMPS(SMD) KM-23SGT(GREEN) |
EX01Y40138 |
CH DISPLAY |
LED DISPLAY(GREEN) LDD4062-10/P10L=15 |
EX03N40483 |
Switch
Ref#
|
Description |
MFR.
Part No.
|
ECHO |
SLIDE SW 2N |
EWSL31026K |
SWR |
SLIDE SW 3N |
EWSL31027K |
MODE |
SLIDE SW 3N |
EWSL31027K |
DIM |
SLIDE SW 3N |
EWSL31027K |
NB/ANL/+10K |
SLIDE SW 3N |
EWSL31027K |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
