Galaxy
DX Radios DX48T
Documentation Project
CBTricks.com
EL

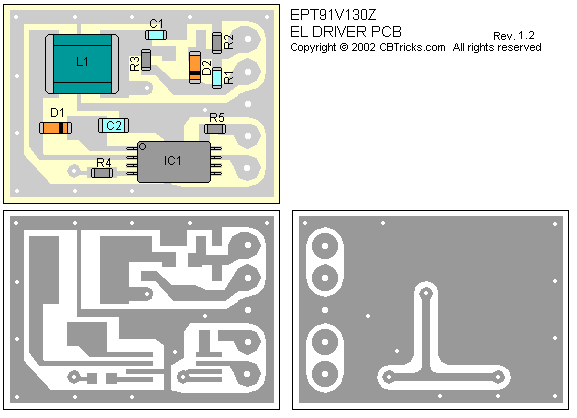

Driver PCB (EPT91V130Z)

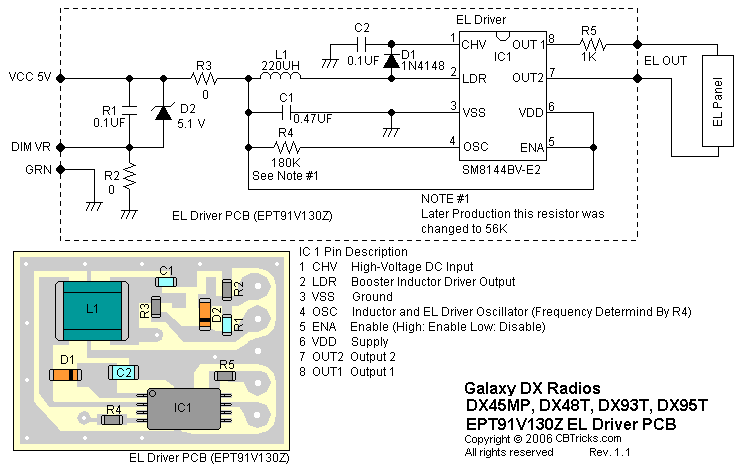

Schematic
Diagram
Schematic
Diagram
Ref#
|
Description |
MFR.
Part No.
|
|
EL DRIVER PCB Complete with Components |
#T-141Q-P14 |
|
EL DRIVER PCB 22x15x1.6tmm(S) |
EPT91V130Z |
Parts List
Resistors
Ref#
|
Description
|
MFR.
Part No.
|
R2 |
CHIP/F/R (SMD) 0.0 OHM |
RCY060004Z |
R3 |
CHIP/F/R (SMD) 0.0 OHM |
RCY060004Z |
R4 |
CHIP/F/R (SMD) 180K
OHM 5% |
RCY061844Z |
R5 |
CHIP/F/R (SMD) 10K OHM 5% |
RCY061034Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C1 |
CHIP/C (SMD) 0.47UF 16WV Z Y5V |
CK5474AD7R |
C2 |
CHIP/C (SMD) 0.1UF 25WV K X7R |
CK2104AB5X |
R1 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
Integrated Circuits
Ref#
|
Description |
MFR.
Part No.
|
IC1 |
I.C. (SMD) SM8144BV-E2 8PIN |
YNSN8144BV |
Inductors
Ref#
|
Description |
MFR.
Part No.
|
L1 |
CHOKE COIL(SMD) 20UH TE K |
YCTLI2274E |
Diode
Ref#
|
Description |
MFR.
Part No.
|
D1 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
D2 |
ZENER DIODE (SMD) LZ 5.1V BT6-11 |
EDZD05519Y |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
|
PCB CONNECTOR/S 5P L=12mm PH=2.5 |
EX07N48265 |
|
WIRE CONNECTOR/H P PH=2mm L=50mm |
EX07N48539 |
Hardware
Ref#
|
Description |
MFR.
Part No.
|
SHIELD HOUSING |
MT240N060X
|
|
|
FOAM H14x14x2 |
XZZZ90053Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
