Galaxy DX Radios DX48T
Documentation Project

CBTricks.com

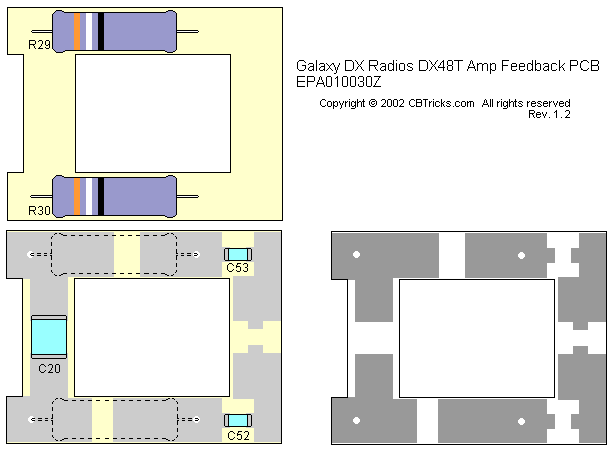

Amp Feed Back PCB (EPA010030Z)

Ref#
Description
MFR. Part No.


FEEDBACK PCB EPA010030Z Complete with Components.

#T-141Q-1



FEEDBACK PCB 33.25x22.75x1.6tmm

EPA010030Z

Capacitors

Ref#
Description
MFR. Part No.

C20

MICA CHIP/C 1200PF 500WV J CH

CK3122BE4A

C52

CHIP/C (SMD) 0.1UF 100WV K X7R

CK4104AA5X

C53

CHIP/C (SMD) 0.1UF 100WV K X7R

CK4104AA5X

Resistors

Ref#
Description
MFR. Part No.

R29

M/O/R P-TYPE 39 OHM 3W P

RFP303904Z

R30

M/O/R P-TYPE 39 OHM 3W P

RFP303904Z
