Galaxy
DX Radios DX48T
Documentation Project
CBTricks.com
Main PCB Layout (EPT690010C)
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MAIN PCB (DX-48T) EPT690010C |
#T-141Q-P01 |
|
|
MAIN P.C.B. 199x188x1.6tmm(S) Complete with Components. |
EPT092912Z |
DIAGRAMS
Main

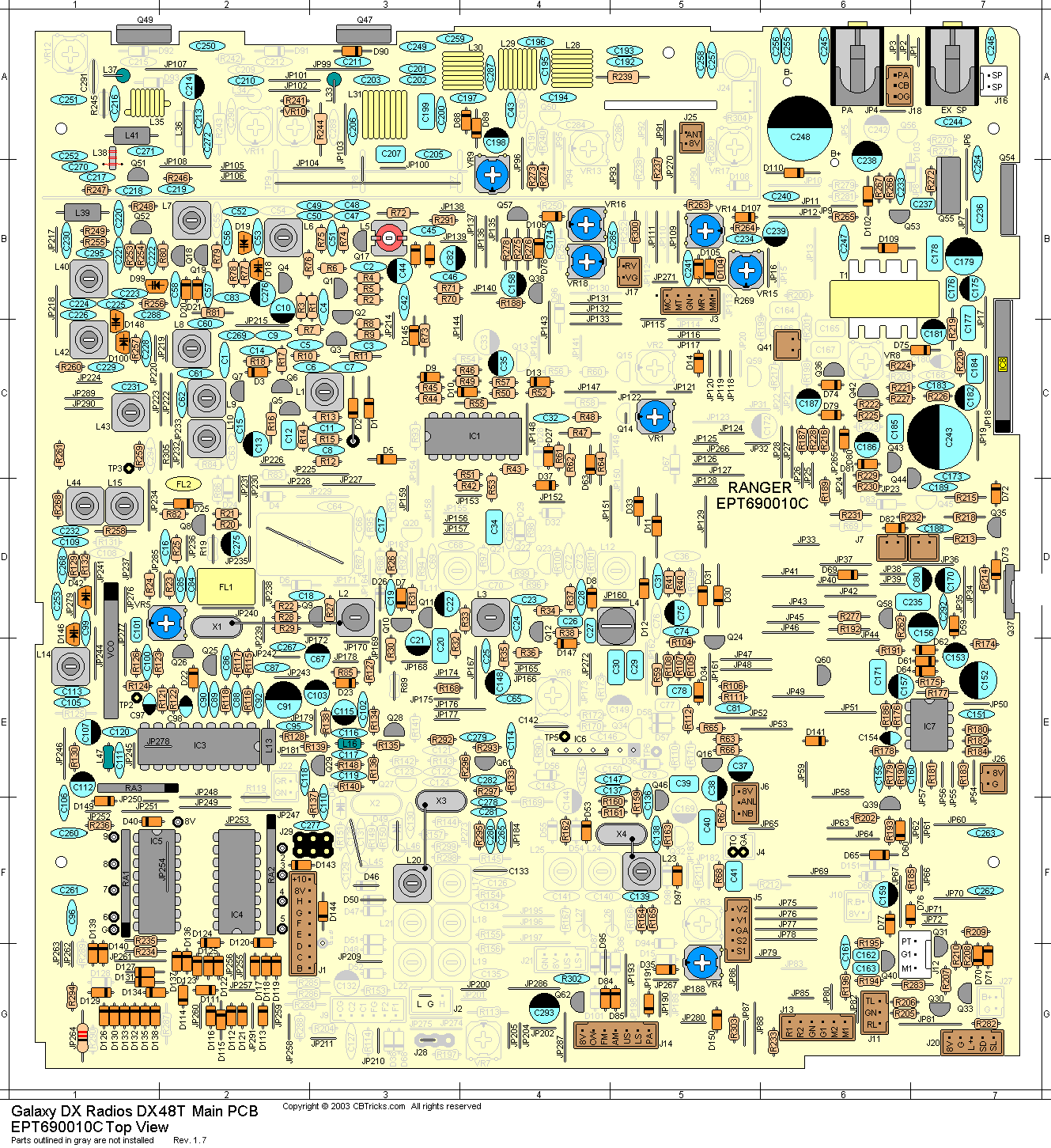

PCB Parts Layout Top View
Main

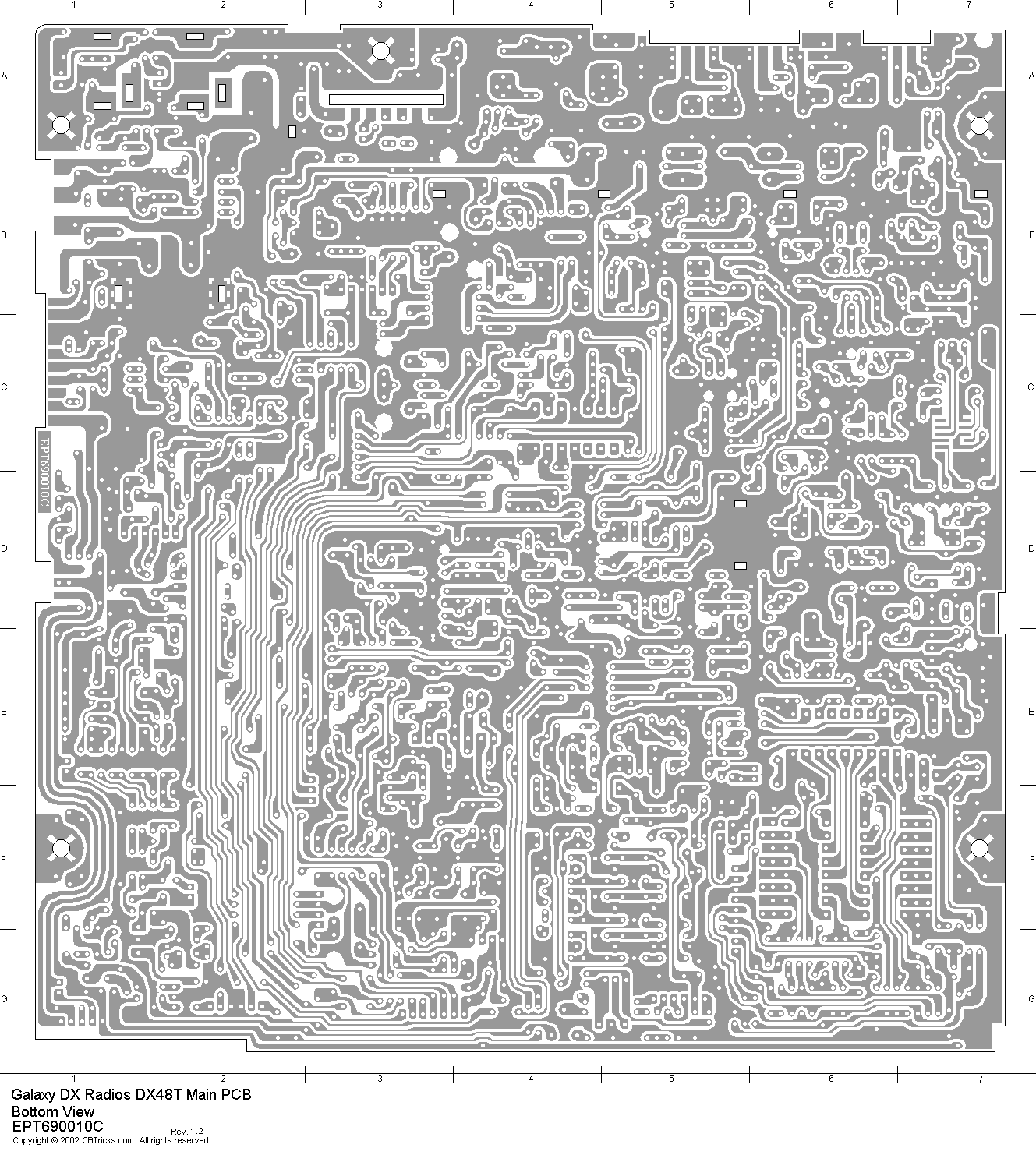

PCB Copper Side View
Main

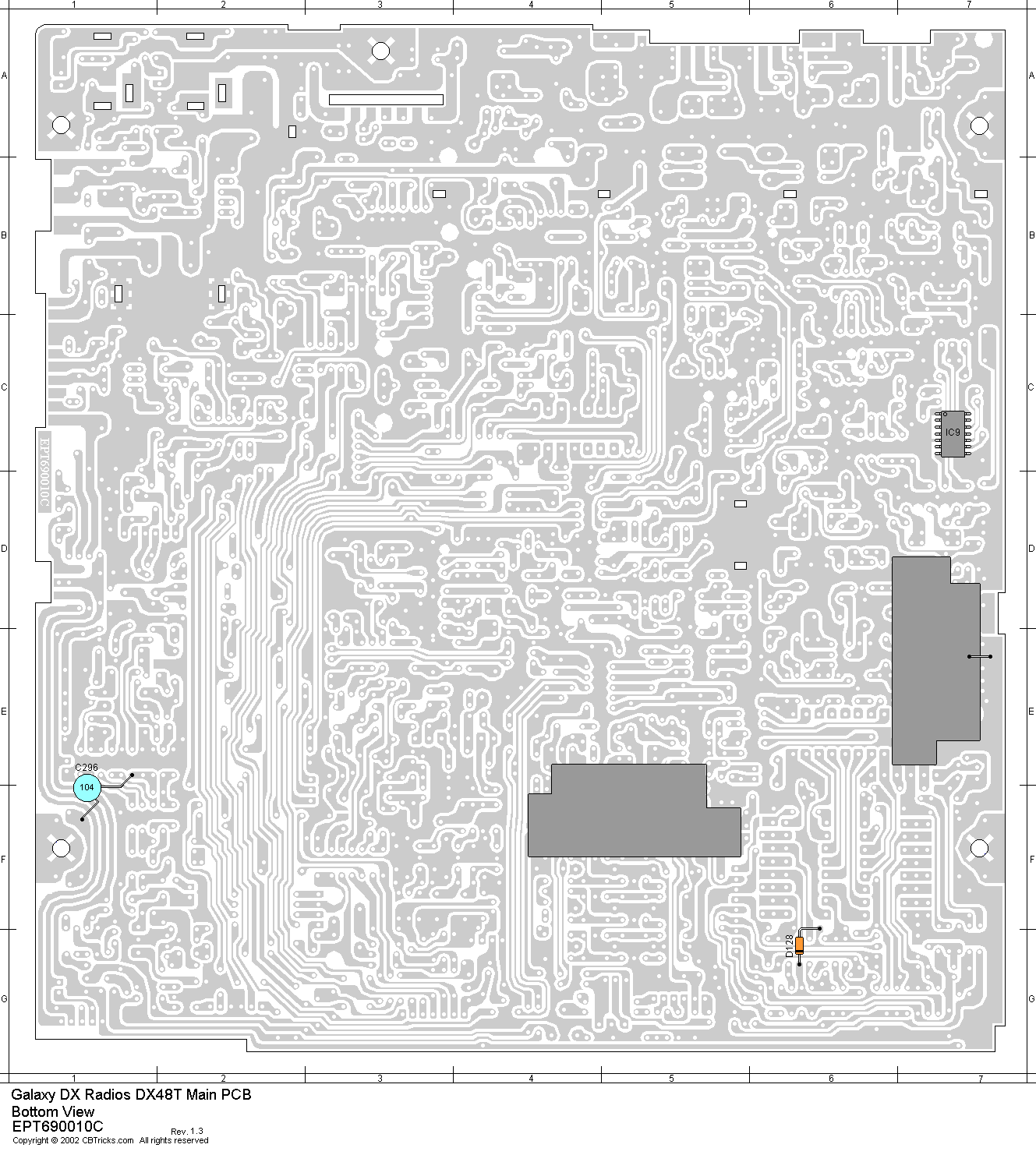

PCB Parts Layout Bottom View
PARTS LISTS Top Side
Capacitors
Coils,
Transformers, Crystals, Filters
Resistors
Diodes
IC's, Transistors
Wire Jumpers,
Connectors
PARTS LIST Bottom Side
Copper Side
Parts
NOTES:
See: Galaxy
DX Radios General Section Notes
Semiconductor
Datasheets Section
