Galaxy DX Radios DX48T
Documentation Project
CBTricks.com

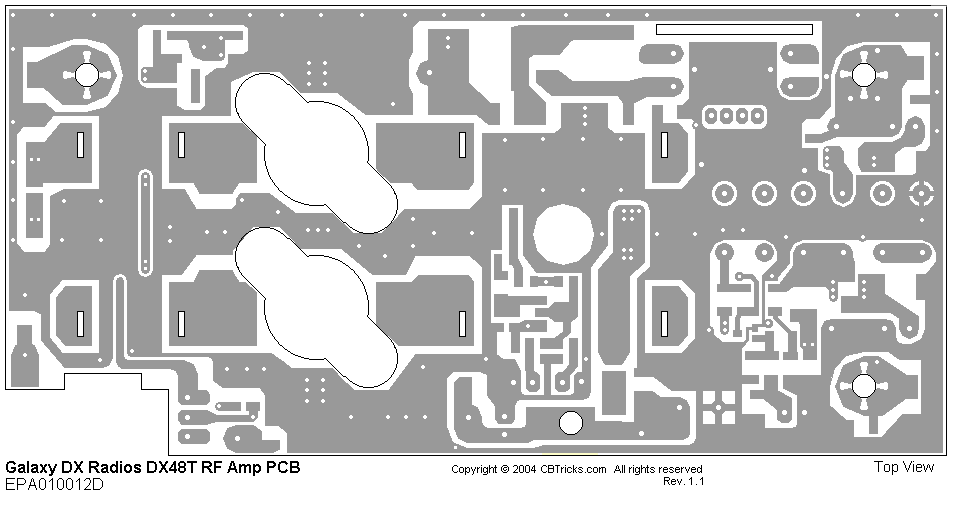

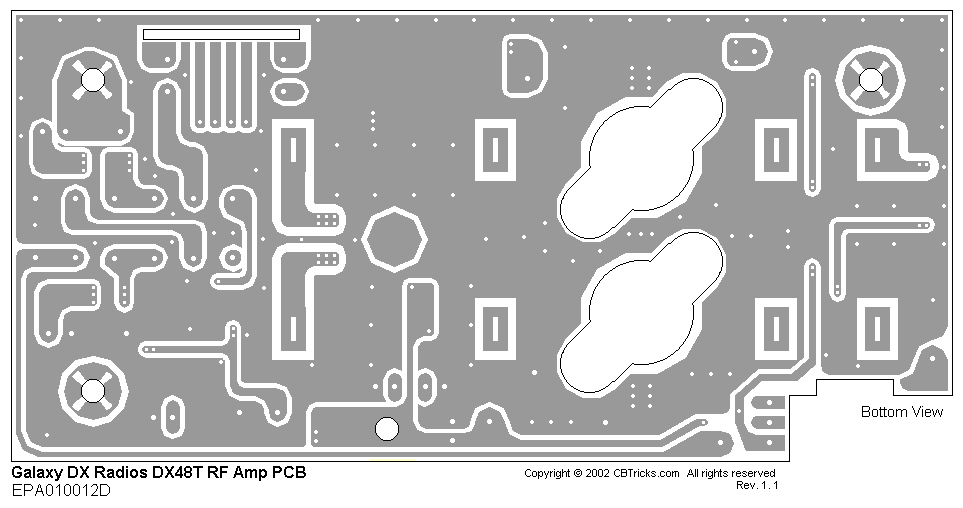

RF AMP PCB (EPA010012D) Trace Layouts

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
