Galaxy
DX Radios DX48T
Documentation Project
CBTricks.com
MODULAR

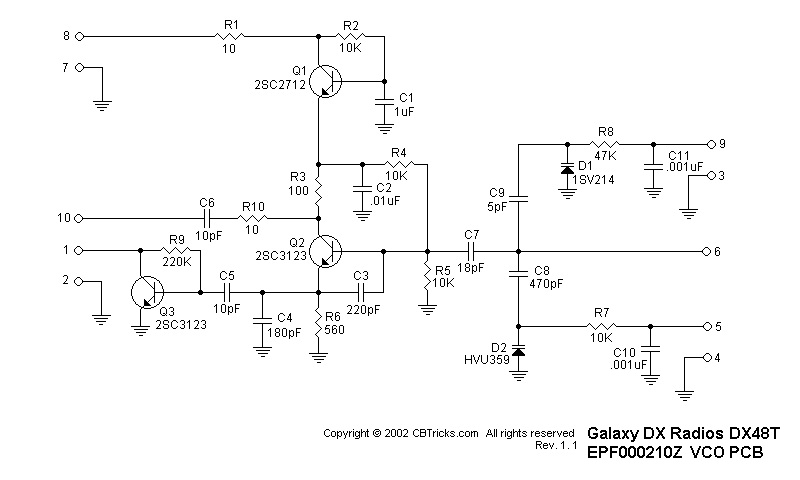

VCO P.C.B. (EPF000210Z)
Trace Layout
Click image to see full size
