Galaxy
DX Radios DX48T
Documentation Project
CBTricks.com

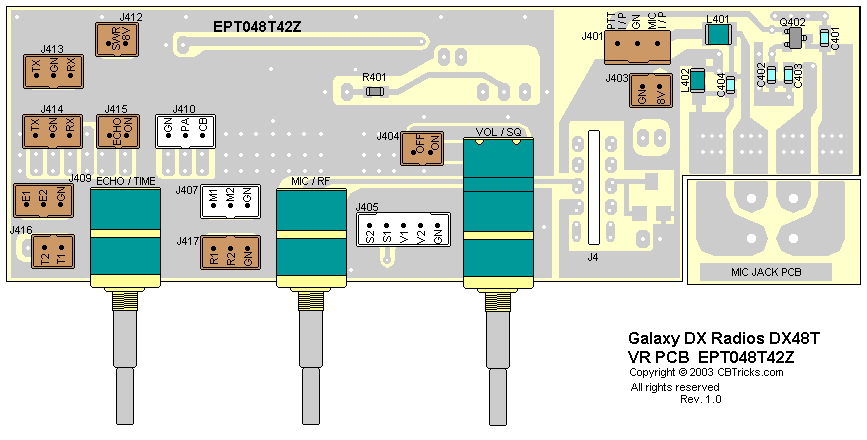

VR PCB (EPT048T42Z)
Trace Layouts
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R401 |
CHIP/F/R (S.M.D) 0.0 OHM 0.1W |
RCY010004Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C401 |
CHIP/C (S.M.D.) 0.01UF 25WV Z Y5V |
CK2103AB7R |
|
C402 |
CHIP/C (S.M.D.) 0.01UF 25WV Z Y5V |
CK2103AB7R |
|
C403 |
CHIP/C (S.M.D.) 0.01UF 25WV Z Y5V |
CK2103AB7R |
|
C404 |
CHIP/C (S.M.D.) 0.01UF 25WV Z Y5V |
CK2103AB7R |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q402 |
T/R (S.M.D.) DTA124EK |
TYDTA124EK |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L401 |
CHOKE COIL (SMD) 5.6UH TC J |
YCTLI5653C |
|
L402 |
BEAD FERRITE COIL WB-403025 |
YCBAD18581 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J401 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
J403 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J404 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J405 |
PCB CONNECTOR/S 5P PH=2MM |
EX07W48826 |
|
J407 |
PCB CONNECTOR/S 3P PH=2MM |
EX07W48824 |
|
J409 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J410 |
PCB CONNECTOR/S 3P PH=2MM |
EX07W48824 |
|
J412 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J413 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J414 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J415 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J416 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J417 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
Pots
|
Ref#
|
Description |
MFR.
Part No.
|
|
ECHO/TIME |
V/R 50KB/50KA |
RV50303578 |
|
MIC/RF |
VR 1KB/1KA |
RV10203524 |
|
VOL/SQ |
VR 50KB/50KA W/SW |
RV50303522 |
