Galaxy
DX Radios DX48T
Documentation Project
CBTricks.com

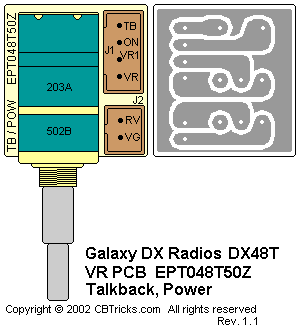

VR PCB (EPT048T50Z)
|
Ref#
|
Description |
MFR.
Part No.
|
|
VR P.C.B. Complete with Components |
#T-141Q-P05 |
|
|
VR P.C.B. 17x16x1.6tmm(S) |
EPT048T50Z |
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 4P PH=2MM |
EX07N48490 |
|
J2 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
Ref#
|
Description |
MFR.
Part No.
|
|
TB&PWR |
VR 20KB/5KB |
RV20303560 |
