Galaxy
DX Radios DX55HP
Documentation Project
CBTricks.com

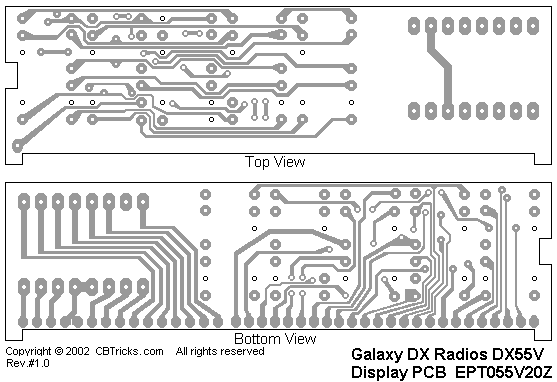

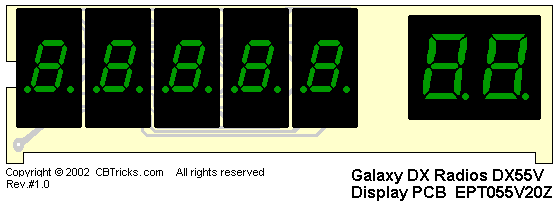

Display PCB Layout (EPT055V20Z)
| Ref# | Description |
MFR.
Part No.
|
|
DISPLAY P.C.B. EPT055V20Z Complete with Components |
#T-140O-P06 |
|
|
DISPLAY P.C.B. |
EPT055V20Z |
LED's
| Ref# | Description |
MFR.
Part No.
|
|
(5)
|
LED DISPLAY LSD3922 (GREEN) ( Counter ) |
EX03N40485 |
|
CH
|
LED DISPLAY GREEN |
EX03N40016 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
CH |
DISPLAY WINDOW ORANGE |
PTDX55020A |
|
Counter |
ACRY WINDOW ORANGE |
PT2100030B |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
