Galaxy DX Radios DX55HP
Documentation Project
CBTricks.com

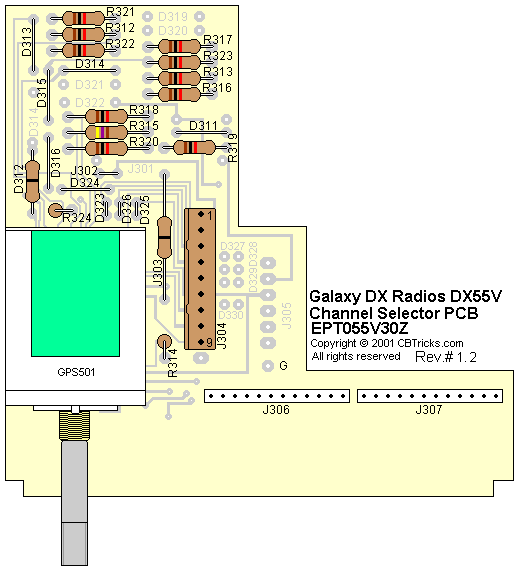

Channel Selector PCB (EPT055V30Z)
Copper Trace Layout



Ref#
Description
MFR. Part No.


CH SW P.C.B. EPT055V30Z Complete with Components

#T-140O-P03


CH SW P.C.B.

EPT055V30Z

Resistors

Ref#
Description
MFR. Part No.

R312

C/F/R 1K OHM 1/4W M

RCM141024A

R313

C/F/R 1K OHM 1/4W M

RCM141024A

R314

C/F/R F-TYPE 1K OHM 1/4W U

RCU141024Z

R315

C/F/R 470 OHM 1/4W M

RCM144714B

R316

C/F/R 1K OHM 1/4W M

RCM141024A

R317

C/F/R 1K OHM 1/4W M

RCM141024A

R318

C/F/R 1K OHM 1/4W M

RCM141024B

R319

C/F/R 1K OHM 1/4W M

RCM141024A

R320

C/F/R 1K OHM 1/4W M

RCM141024B

R321

C/F/R 1K OHM 1/4W M

RCM141024A

R322

C/F/R 1K OHM 1/4W M

RCM141024A

R323

C/F/R 1K OHM 1/4W M

RCM141024A

R324

C/F/R F-TYPE 1K OHM 1/4W U

RCU141024Z




J303

C/F/R 0 OHM 1/4W P

RCP140004Z

D312

C/F/R 0 OHM 1/4W P

RCP140004Z

Jumper Wire

Ref#
Description
MFR. Part No.

J302

JUMPER WIRE 7x3MMx7

WX01070703

J323

JUMPER WIRE 7x3MMx7

WX01070703

J325

JUMPER WIRE 7x3MMx7

WX01070703

J326

JUMPER WIRE 7x3MMx7

WX01070703




D311

JUMPER WIRE 7x8x7

WX01070708

D313

JUMPER WIRE 7x8x7

WX01070708

D314

JUMPER WIRE 7x8x7

WX01070708

D315

JUMPER WIRE 7x8x7

WX01070708

D316

JUMPER WIRE 7x8x7

WX01070708

D324

JUMPER WIRE 7x8x7

WX01070708

Connectors

Ref#
Description
MFR. Part No.

J304

PCB CONNECTOR/S 10P

EX07N40014

J307

PCB CONNECTOR/S 12P PH=2

EX07N48150

CN4-J307

WIRE CONNECTOR/H 12P-12P L=120 PH=2

EX07W49253

J306

PCB CONNECTOR/S 12P PH=2(WHITE)

EX07N48767

CN3-J306

WIRE CONNECTOR/H 12P-12P L=100 PH=2

EX07W49252

Switch

Ref#
Description
MFR. Part No.


ROTARY SW GPS-0501

EWRT32000S
