Galaxy
DX Radios DX55HP
Documentation Project
CBTricks.com

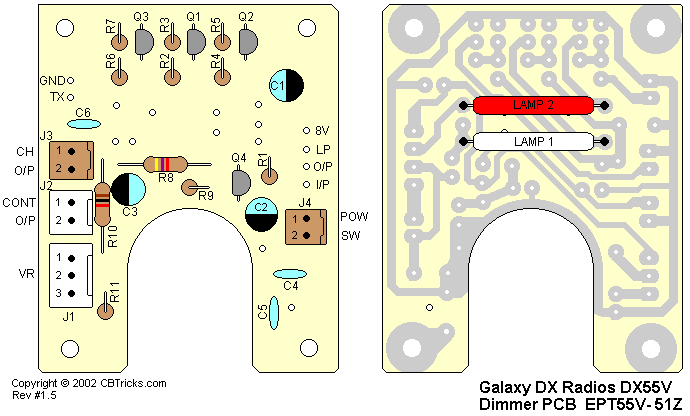

Dimmer
PCB (EPT55V-51Z)
Trace Layout
| Ref# | Description |
MFR.
Part No.
|
|
DIMMER P.C.B. EPT055V51Z |
#T-140O-P05 |
|
|
DIMMER P.C.B. 42x52x1.6tmm(S) |
EPT055V51Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
C/F/R 47 OHM 1/4W U |
RCU144704Z |
|
R2 |
C/F/R F-TYPE 10K OHM 1/4W U |
RCU141034Z |
|
R3 |
C/F/R 3.3K OHM 1/4W U |
RCU143324Z |
|
R4 |
C/F/R F-TYPE 10K OHM 1/4W U |
RCU141034Z |
|
R5 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
|
R6 |
C/F/R F-TYPE 10K OHM 1/4W U |
RCU141034Z |
|
R7 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
|
R8 |
C/F/R 4.7K OHM 1/4W M |
RCM144724B |
|
R9 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
|
R10 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
|
R11 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
E/C 47UF 16WV Z |
CE0164767Z |
|
C2 |
E/C 10UF 25WV Z |
CE0251067Z |
|
C3 |
E/C 47UF 16WV Z |
CE0164767Z |
|
C4 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C5 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C6 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R 2SC945P |
T2SC00945P |
|
Q2 |
T/R 2SC945P |
T2SC00945P |
|
Q3 |
T/R 2SC945P |
T2SC00945P |
|
Q4 |
T/R 2SC945P |
T2SC00945P |
Lamps
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
LAMP 0.05A 12V RED |
EX02N40229 |
|
|
LAMP 0.05 12V |
EX02N40230 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 3P T PH=2.5(WHITE) |
EX07N41227 |
|
J1 |
WIRE CONNECTOR/H 3P L=120MM |
EX07N48192 |
|
J2 |
PCB CONNECTOR/S 2P T PH=2.5(WHITE) |
EX07N41330 |
|
J2 |
WIRE CONNECTOR/H 2P L=180MM |
EX07N48041 |
|
J3 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
|
J3 |
WIRE CONNECTOR/H 2P L=160MM |
EX07N48196 |
|
J4 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
|
J4 |
WIRE CONNECTOR/H 2P L=100MM |
EX07N48195 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
(4) |
SET SCREW M2.6x0.45Px4 |
JS052604MN |
