Galaxy DX Radios DX55HP
Documentation Project
CBTricks.com
Frequency Counter PCB (EPT210014D) Trace Layouts (Started with later 2005 Production)

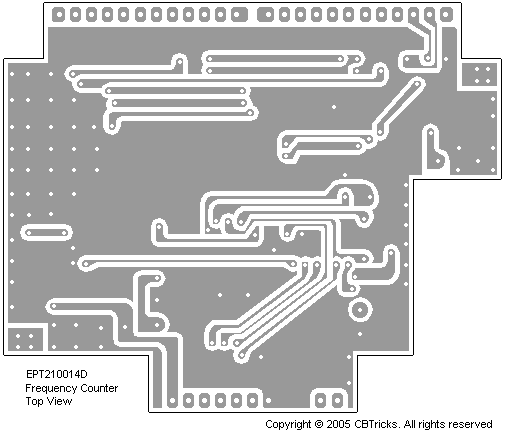

Top View

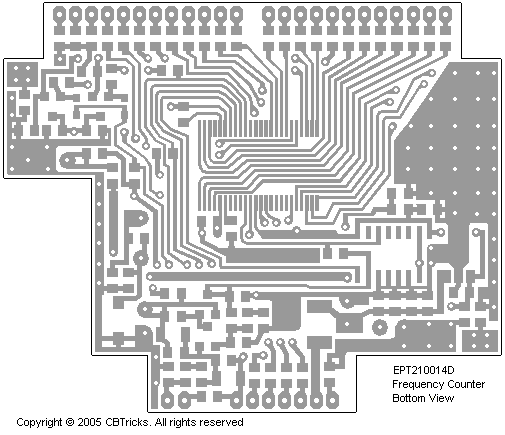

Bottom View

---

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
