Galaxy DX Radios DX55V
Documentation Project

CBTricks.com

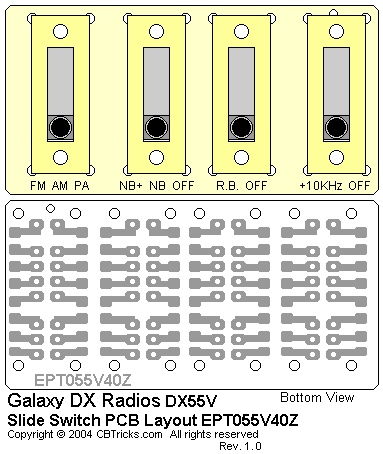

Slide Switch PCB Layout (EPT055V40Z)


Ref# Description
MFR. Part No.


SLIDE SW P.C.B. EPT055V40Z Complete with Components

#T-140O-P04



SLIDE SW P.C.B 53x27x1.6tmm(S)

EPT055V40Z

Switches

Ref#
Description
MFR. Part No.
R.B.

SLIDE SW 2N

EWSL31026K

+10KHz

SLIDE SW 2N

EWSL31026K

NB

SLIDE SW 3N

EWSL31027K

MODE

SLIDE SW 3N

EWSL31027K

Hardware

Ref#
Description
MFR. Part No.

SW(8)

SET SCREW M2.6x0.45Px4

JS052604MN

SW

MASK PLATE(SW)

XZZZ90296A


Copyright © 1998,1999,2000, 2001, 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
