Ref#

Description

MFR. Part No.

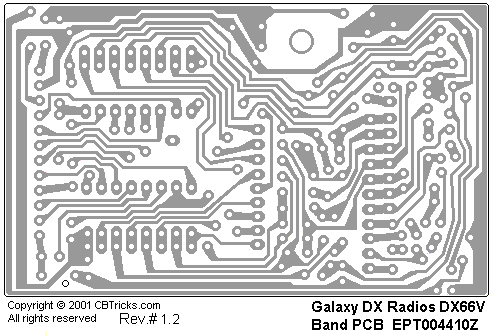

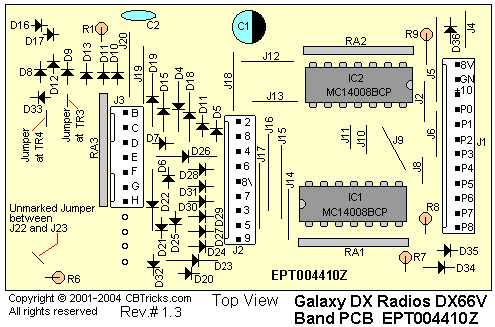

BAND PCB 82x50x1.6t

EPT004410Z

R6

C/F/R 47K OHM 1/4W U

RCU144734Z

R7

C/F/R 47K OHM 1/4W U

RCU144734Z

R8

C/F/R 47K OHM 1/4W U

RCU144734Z

R9

C/F/R 47K OHM 1/4W U

RCU144734Z

RA1

RESISTOR ARRAY 47K 8P

RCS0870014

RA2

RESISTOR ARRAY 47K 8P

RCS0870014

RA3

RESISTOR ARRAY 47K 8P

RCS0870014

Ref#

Description

MFR. Part No.

C1

E/C 220UF 10WV Z

CE0102277Z

C2

C/C 0.01UF 50WV SL Z

CC0501037L

Ref#

Description

MFR. Part No.

IC1

I.C. TC4008B 16PIN (TOSHIBA)

ENTA04008B

IC2

I.C. TC4008B 16PIN (TOSHIBA)

ENTA04008B

Ref#

Description

MFR. Part No.

D4-36

DIODE 1N4148

EDIN04148Z

Ref#

Description

MFR. Part No.

J1

PCB CONNECTOR/S 12P T

EX07N41309

J1

WIRE CONNECTOR/H 12P

EX07N48484

J2

PCB CONNECTOR/S 9P T

EX07N48083

J2

WIRE CONNECTOR/H 9P-9P

EX07N48483

J3

PCB CONNECTOR/S 7P T

EX07N48167

J3

WIRE CONNECTOR/H 7P L=290mm

EX07N48759

J4

JUMPER WIRE 7x6x7

WX01070706

J5

JUMPER WIRE 7x15x7

WX01070715

J6

JUMPER WIRE 7x8x7

WX01070708

J7

JUMPER WIRE 7x7x7

WX01070707

J8

JUMPER WIRE 7x4x7

WX01070704

J9

JUMPER WIRE 7X9mmX7

WX01070709

J10

JUMPER WIRE 7x5x7

WX01070705

J11

JUMPER WIRE 7x4x7

WX01070704

J12

JUMPER WIRE 7X9mmX7

WX01070709

J13

JUMPER WIRE 7x8x7

WX01070708

J14

JUMPER WIRE 7X9mmX7

WX01070709

J15

JUMPER WIRE 7xl3x7

WX01070713

J16

JUMPER WIRE 7xl3x7

WX01070713

J17

JUMPER WIRE 7x11mmx7

WX01070711

J18

JUMPER WIRE 7x11mmx7

WX01070711

J19

JUMPER WIRE 7x10x7

WX01070710

J20

JUMPER WIRE 7x11mmx7

WX01070711
