Documentation Project
CBTricks.com

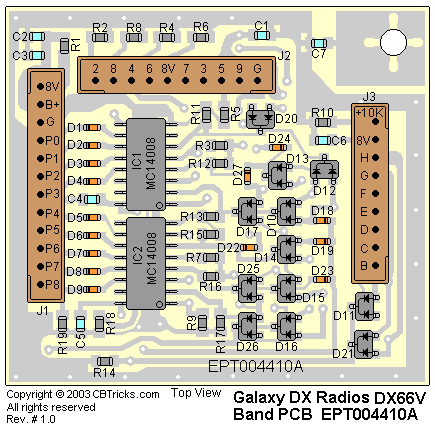

Band Board Layout (EPT004410A)
Trace Layout
Schematic Diagram
Schematic Diagram
Galaxy
DX Radios DX66V
Documentation Project
CBTricks.com
Band Board Layout (EPT004410A)
Trace Layout
Schematic Diagram
Schematic Diagram
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
BAND PCB EPT004410A Complete with Components |
#MM-104T-P06 |
|
|
BAND P.C.B. 46x41x1.6tmm(S) |
EPT004410A |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R2 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R3 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R4 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R5 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R6 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R7 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R8 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R9 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R10 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R11 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R12 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R13 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R14 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R15 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R16 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R17 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R18 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R19 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C2 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C3 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C4 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C5 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C6 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C7 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
Integrated Circuits
|
Ref#
|
Description |
MFR.
Part No.
|
|
IC1 |
I.C. (SMD) MC14008BDR2(16PIN) |
YNMC14008D |
|
IC2 |
I.C. (SMD) MC14008BDR2(16PIN) |
YNMC14008D |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D1 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D2 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D3 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D4 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D5 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D6 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D7 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D8 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D9 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D10 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D11 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D12 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D13 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D14 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D15 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D16 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D17 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D18 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D19 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D20 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D21 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D22 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D23 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D24 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D25 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D26 |
DIODE (SMD) 1SS184-TE85L |
EDSS00184Y |
|
D27 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 12P PH=2 |
EX07N48150 |
|
J1 |
WIRE CONNECTOR/H 12P L=160mm PH=2mm |
EX07N49280 |
|
J2 |
PCB CONNECTOR/S 10P PH=2 |
EX07N48209 |
|
J2 |
WIRE CONNECTOR/H 10P-9P L=150 2.5/2 |
EX07N49273 |
|
J3 |
PCB CONNECTOR/S 9P PH=2 |
EX07N48543 |
|
J3 |
WIRE CONNECTOR/H 9P PH=2mm L=290mm |
EX07N49281 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
PCB BRACKET |
MT3001010S |
|
PCB BKT |
SET SCREW M3x0.5Px6 |
JS053006MN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
