Galaxy DX Radios DX66V
Documentation Project

CBTricks.com

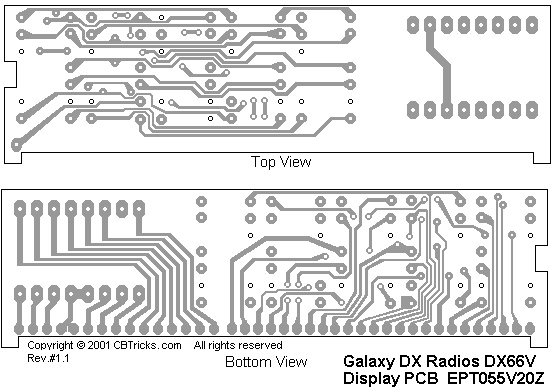

Display PCB Layout (EPT055V20Z)



Ref# Description
MFR. Part No.


DISPLAY PCB EPT055V20Z Complete with Components

#T-140O-P06



DISPLAY PCB

EPT055V20Z

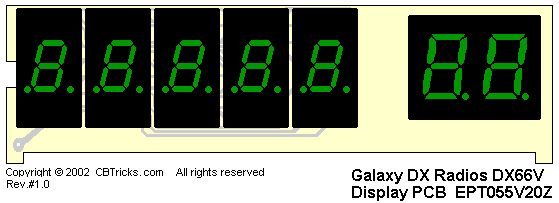

LED's

Ref# Description
MFR. Part No.
Counter

LED DISPLAY LSD3922(GREEN)

EX03N40485

  CH

LED DISPLAY GREEN

EX03N40016

Hardware

Ref#
Description
MFR. Part No.



DISPLAY WINDOW ORANGE

PTDX55020A
