Galaxy
DX Radios DX66V
Documentation Project
CBTricks.com

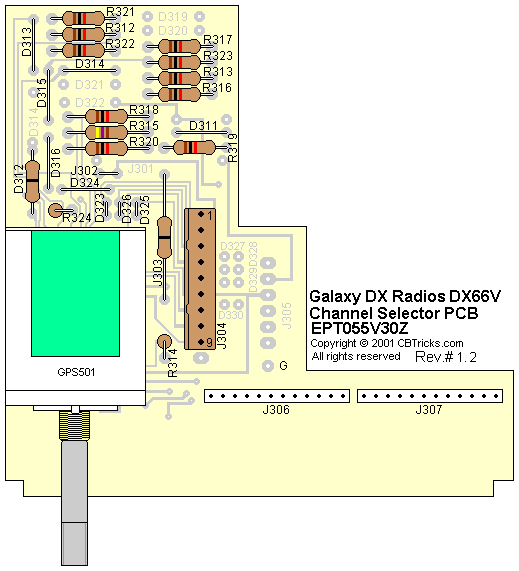

Channel Selector PCB (EPT055V30Z)
Copper
Trace Layout
Ref.# |
Description |
MFR. Part No. |
CH SW PCB EPT055V30Z Complete with Components |
#MT-140P-P04 |
|
CH SW PCB |
EPT055V30Z |
Resistors
Ref.# |
Description |
MFR. Part No. |
R312 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R313 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R314 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
R315 |
C/F/R 470 OHM 1/4W M |
RCM144714B |
R316 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R317 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R318 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
R319 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R320 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
R321 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R322 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R323 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R324 |
C/F/R F-TYPE 1K OHM 1/4W U |
RCU141024Z |
|
|
|
J303 |
C/F/R 0 OHM 1/4W |
RCP140004Z |
D312 |
C/F/R 0 OHM 1/4W |
RCP140004Z |
Jumpers
Ref.# |
Description |
MFR. Part No. |
J302 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
J323 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
J325 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
J326 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
D311 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D313 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D314 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D315 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D316 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D324 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
Connectors
Ref.# |
Description |
MFR. Part No. |
J304 |
PCB CONNECTOR/S 9P T PH=2.5(WHITE) |
EX07N48083 |
J307 |
PCB CONNECTOR/S 12P PH=2 |
EX07N48150 |
CN4-J307 |
WIRE CONNECTOR/H 12P-12P L=120 PH=2 |
EX07W49253 |
J306 |
PCB CONNECTOR/S 12P PH=2(WHITE) |
EX07N48767 |
CN3-J306 |
WIRE CONNECTOR/H 12P-12P L=100 PH=2 |
EX07W49252 |
Switch
Ref.# |
Description |
MFR. Part No. |
|
ROTARY SW GPS-0501 |
EWRT32000S |
Hardware
Ref.# |
Description |
MFR. Part No. |
CH(2) |
SET SCREW M3x0.5Px6 |
JS053006MN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
