Galaxy DX Radios DX66V
Documentation Project

CBTricks.com

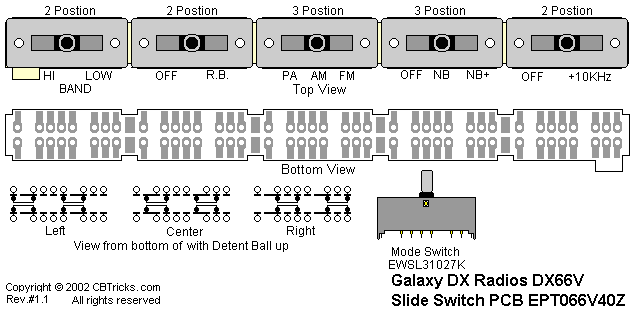

MODE SWITCH PCB (EPT066V40Z)



Ref. # Description
MFR. Part No.


SILDE SW PCB EPT066V40Z Complete with Components

#MT-140P-P05



SILDE PCB 112x11x1.6tmm(S)

EPT066V40Z



Ref. #

Description

MFR. Part No.

BAND
Slide Switch (2 Pos.)
EWSL31026K
R.B.

Slide Switch (2 Pos.)

EWSL31026K

PA AM FM

Slide Switch (3 Pos.)

EWSL31027K

N.B.
Slide Switch (3 Pos.)
EWSL31027K
10KHz
Slide Switch (2 Pos.)
EWSL31026K



Ref. #
Description
MFR. Part No.

SLIDE SW

SET SCREW M2.6x0.45Px4 (10)

JS052604MN

SLIDE SW

MASK PLATE(SW)

XZZZ90296A

SW CHASSIS

MTDX55042X
