Galaxy
DX Radios DX73V
Documentation Project
CBTricks.com
Dimmer
PCB (EPT55V-51Z)
Schematic
Diagram

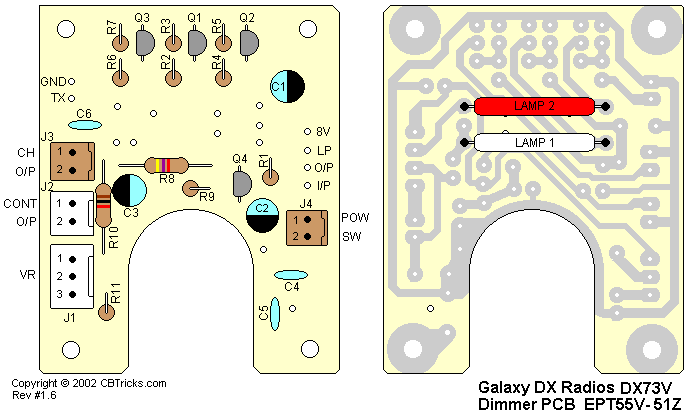

Trace Layout
|
Ref.
No.
|
Description |
MFR.
Part No.
|
| DIMMER P.C.B. 42x52xl.6tmm |
EPT055V51Z
|
|
|
|
DIMMER P.C.B. Complete with Components |
#MT-140O-P05 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
R1 |
C/F/R 47 OHM 1/4W U |
RCU144704Z |
|
R2 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
|
R3 |
C/F/R 3.3K OHM 1/4 U |
RCU143324Z |
|
R4 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
|
R5 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
|
R6 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
|
R7 |
C/F/R 2.2K OHM 1/4W U |
RCU142224Z |
|
R8 |
C/F/R 4.7K OHM 1/4W M |
RCM144724B |
|
R9 |
C/F/R 47K OHM- 1/4W U |
RCU144734Z |
|
R10 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
|
R11 |
C/F/R 1K OHM 1/4W U |
RCU141024Z |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
C1 |
E/C 47UF 16WV Z |
CE0164767Z |
|
C2 |
E/C 10UF 25WV Z |
CE0251067Z |
|
C3 |
E/C 47UF 16WV Z |
CE0164767Z |
|
C4 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
|
C5 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
|
C6 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q1 |
TR 2SC945P |
T2SC00945P |
|
Q2 |
TR 2SC945P |
T2SC00945P |
|
Q3 |
TR 2SC945P |
T2SC00945P |
|
Q4 |
TR 2SC945P |
T2SC00945P |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 3P T |
EX07N41227 |
|
J1 |
WIRE CONNECTOR/H 3P L=120MM |
EX07N48192 |
|
J2 |
PCB CONNECTOR/S 2P T |
EX07N41330 |
|
J2 |
WIRE CONNECTOR/H 2P L=180MM |
EX07N48041 |
|
J3 |
PCB CONNECTOR/S 2P |
EX07N41226 |
|
J3 |
WIRE CONNECTOR/H 2P L=160MM |
EX07N48196 |
|
J4 |
PCB CONNECTOR/S 2P |
EX07N41226 |
|
J4 |
WIRE CONNECTOR/H 2P L=100MM |
EX07N48195 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
RX |
LAMP 0.05 12V |
EX02N40230 |
|
TX |
LAMP 0.05A 12V RED |
EX02N40229 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
SET SCREW M2.6x0.45Px4 (4) |
JS052604MN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
