Galaxy DX Radios DX73V
Documentation Project

CBTricks.com

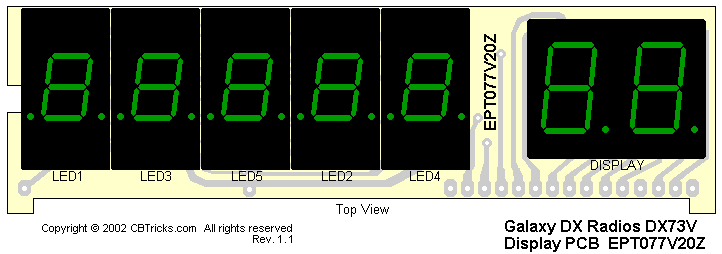

Display PCB (EPT077V20Z)
Trace Layout

Ref. No.
Description
MFR. Part No.
  DISPLAY P.C.B. 82x25x1.2tmm
EPT077V20Z


DISPLAY P.C.B. Complete with Components

#MT-140R-P03



Ref. No.

Description

MFR. Part No.

LED1

LED DISPLAY LSD3922 (GREEN)

EX03N40485

  or RT-DA3125AG-R

LED2

LED DISPLAY LSD3922 (GREEN)

EX03N40485

  or RT-DA3125AG-R

LED3

LED DISPLAY LSD3922 (GREEN)

EX03N40485

  or RT-DA3125AG-R

LED4

LED DISPLAY LSD3922 (GREEN)

EX03N40485

  or RT-DA3125AG-R

LED5

LED DISPLAY LSD3922 (GREEN)

EX03N40485

  or RT-DA3125AG-R

DISPLAY

LED DISPLAY GREEN CSD-425GK-21

EX03N40469
