Galaxy DX Radios DX73V
Documentation Project

CBTricks.com

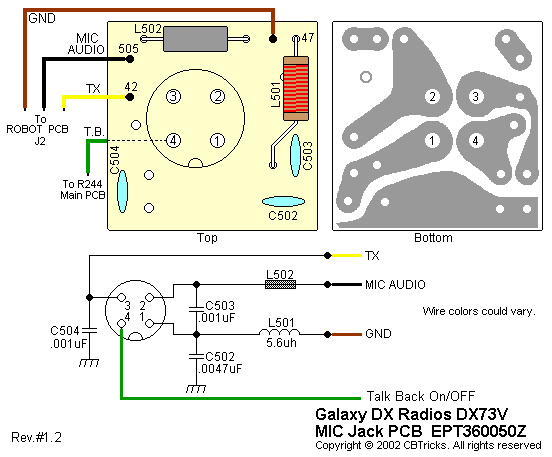

Mic Jack PCB (EPT360050Z)



Ref. No.

Description

MFR. Part No.


MIC P.C.B. 25x25xl.6mm
EPT360050Z


MIC P.C.B. Complete with Components

#MT-140R-P08



Ref. No.

Description

MFR. Part No.

C502

C/C 0.0047UF 50WV SL Z

CC0504727L

C503

C/C 0.001UF 50WV SL Z

CC0501027L

C504

C/C 0.001UF 50WV SL Z

CC0501027L



Ref. No.

Description

MFR. Part No.

L501

CHOKE COIL 5.6UH

ECCHK16001

L502

BEAD COIL 3.5x6x1.2 PH=12.5

ECBAD18550



Ref. No.

Description

MFR. Part No.



MIC JACK SCS-16-4(R)

EX06N41020
