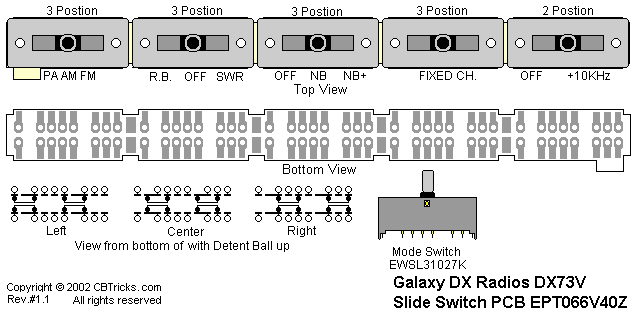

MODE SWITCH PCB (EPT066V40Z)

Ref. No.
Description
MFR. Part No.
  Mode SW P.C.B.
EPT066V40Z


Mode SW P.C.B. Complete with Components

#MT-140R-P09



Ref. No.

Description

MFR. Part No.

PA AM FM
Slide Switch (3 Pos.)
EWSL31027K
R.B. SWR

Slide Switch (3 Pos.)

EWSL31027K

N.B.

Slide Switch (3 Pos.)

EWSL31027K

FIXED CH.
Slide Switch (3 Pos.)
EWSL31027K
+10KHz
Slide Switch (2 Pos.)
EWSL31026K



Ref. No.
Description
MFR. Part No.



SET SCREW M2.6x0.45Px4 (10)

JS052604MN



Ref. No.

Description

MFR. Part No.


MASK PLATE(SW) 20mm
XZZZ90296A


INSULATION SHEET 97x16x0.6t
BETWEEN VR E-TONE & SLIDE SW

XZZZ90309Z
