Galaxy DX Radios DX77HML
Documentation Project

CBTricks.com

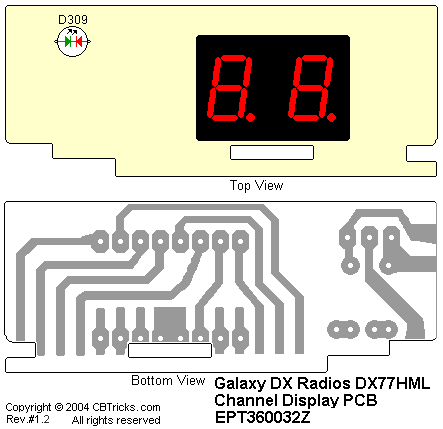

Display PCB Layout (EPT360032Z)
Schematic Diagram



Ref#
Description
MFR. Part No.


LED DISPLAY PCB EPT360032A Complete with Components

#T-120I-P04



DISPLAY PCB 87x40x1.6tmm

EPT360032A



Ref#
Description
MFR. Part No.
CH

LED DISPLAY RED 0.4in

EX03N40003

 D309

LED 3MM RED/GREEN

EX01N40004



Ref#
Description
MFR. Part No.


LED DISPLAY HOLDER

PT3600060A



LED DISPLAY WINDOW RED

PT3600070A
