Galaxy DX Radios DX88HL
Documentation Project
CBTricks.com
Frequency Counter PCB Trace Layouts (EPT210014C)

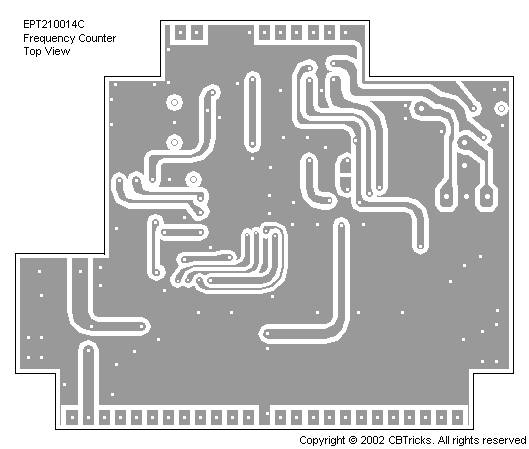

Top View

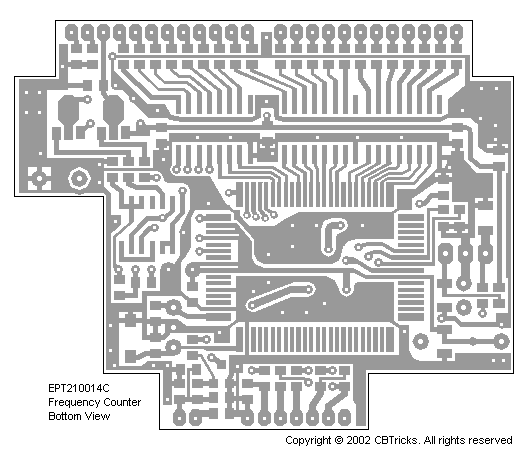

Bottom View

---

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
