Galaxy DX Radios DX88HL
Documentation Project
CBTricks.com

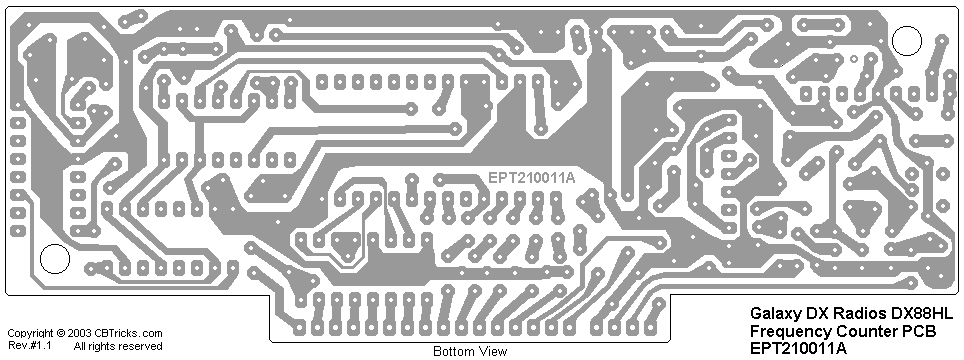

Frequency Counter Board Layout (EPT210011A) Early Production

Bottom View



---
