Galaxy
DX Radios DX88HL
Documentation Project
CBTricks.com

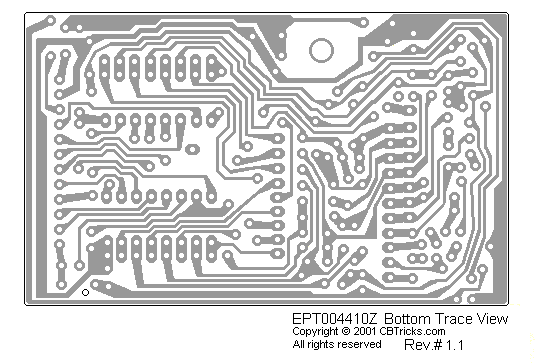

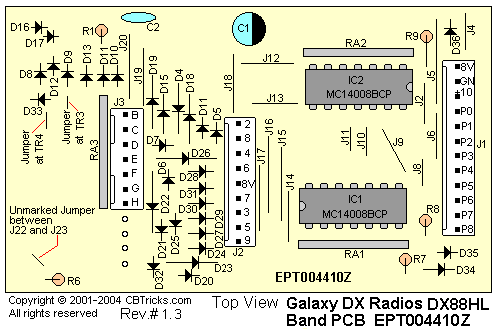

Band Board Layout
Schematic Diagram
|
Ref#
|
Description |
MFR.
Part No.
|
|
BAND PCB 82x50x1.6t |
EPT004410Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R6 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
|
R7 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
|
R8 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
|
R9 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
|
RA1 |
RESISTOR ARRAY 47K 8P |
RCS0870014 |
|
RA2 |
RESISTOR ARRAY 47K 8P |
RCS0870014 |
|
RA3 |
RESISTOR ARRAY 47K 8P |
RCS0870014 |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
E/C 220UF 10WV Z |
CE0102277Z |
|
C2 |
C/C 0.01UF 50WV SL Z |
CCO501037L |
Integrated Circuits
|
Ref#
|
Description |
MFR.
Part No.
|
|
IC1 |
I.C.(MOTOROLA) MC14008BCP 16PIN |
ENMC14008B |
|
IC2 |
I.C.(MOTOROLA) MC14008BCP 16PIN |
ENMC14008B |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D4-36 |
DIODE IN4148 |
EDIN04148Z |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 12P T PH=2.5 (WHITE) |
EX07N41309 |
|
J1 |
WIRE CONNECTOR/H 12P |
EX07N48484 |
|
J2 |
PCB CONNECTOR/S 9P T PH=2.5(WHITE) |
EX07N48083 |
|
J2 |
WIRE CONNECTOR/H 9P-9PL=150PH=2.5 |
EX07N48483 |
|
J3 |
PCB CONNECTOR/S 7P T PH=2.5(WHITE) |
EX07N48167 |
|
J3 |
WIRE CONNECTOR/H 7P |
EX07N48482 |
Jumper Wire
|
Ref#
|
Description |
MFR.
Part No.
|
|
J4 |
JUMPER WIRE 7x6x1 |
WX01070706 |
|
J5 |
JUMPER WIRE 7x15x7 |
WX01070715 |
|
J6 |
JUMPER WIRE 7x8x7 |
WX01070708 |
|
J7 |
JUMPER WIRE 7x7x7 |
WX01070707 |
|
J8 |
JUMPER WIRE 7x4x7 |
WX01070704 |
|
J9 |
JUMPER WIRE 7X9MMX7 |
WX01070709 |
|
J10 |
JUMPER WIRE 7x5x7 |
WX01070705 |
|
J11 |
JUMPER WIRE 7x4x7 |
WX01070704 |
|
J12 |
JUMPER WIRE 7X9MMX7 |
WX01070709 |
|
J13 |
JUMPER WIRE 7x8x7 |
WX01070708 |
|
J14 |
JUMPER WIRE 7X9MMX7 |
WX01070709 |
|
J15 |
JUMPER WIRE 7x13x7 |
WX01070713 |
|
J16 |
JUMPER WIRE 7x13x7 |
WX01070713 |
|
J17 |
JUMPER WIRE 7x11mmx7 |
WX01070711 |
|
J18 |
JUMPER WIRE 7x11mmx7 |
WX01070711 |
|
J19 |
JUMPER WIRE 7x10x7 |
WX01070710 |
|
J20 |
JUMPER WIRE 7x11mmx7 |
WX01070711 |
|
J22 |
JUMPER WIRE 7x3MMx7 |
WX01070703 |
|
J23 |
JUMPER WIRE 7x3MMx7 |
WX01070703 |
|
TR3 |
JUMPER WIRE 7x3MMx7 |
WX01070703 |
|
TR4 |
JUMPER WIRE 7x3MMx7 |
WX01070703 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
