Galaxy DX Radios DX88HL
Documentation Project

CBTricks.com

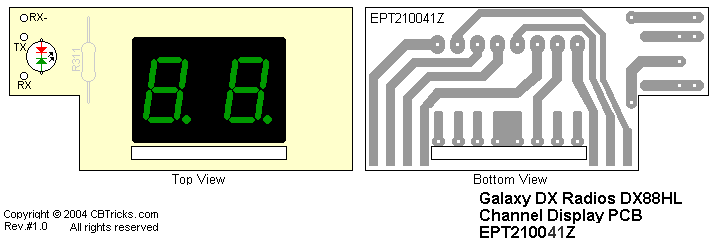

Channel Display PCB Layout (EPT210041Z)

Ref#
Description
MFR. Part No.


CH DISPLAY P.C.B. EPT210041Z

#MT-115-P05



CH DISPLAY P.C.B. 44x22x1.6tmm

EPT210041Z

LED's

Ref#
Description
MFR. Part No.

CH

LED DISPLAY GREEN

EX03N40016

TX/RX

LED 3MM RED/GREEN

EX01N40004

Connectors

Ref#
Description
MFR. Part No.


WIRE CONNECTOR/H 3P L=120MM

EX07N48192

Hardware

Ref#
Description
MFR. Part No.


LEAD WIRE #26 70MM BLACK 5:5

WL0007005Z

CH

DISPLAY WINDOW 30X23X1 ORANGE

PT2100040B
