Galaxy DX Radios DX88HL
Documentation Project

CBTricks.com

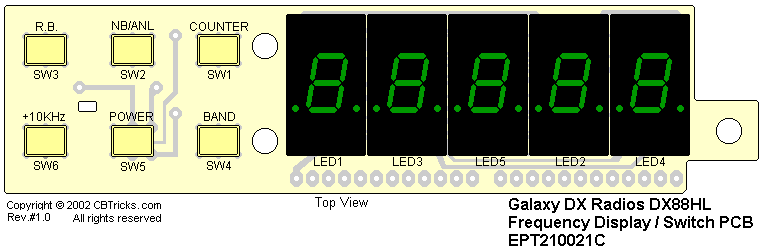

Frequency Display and Pushbutton Switch PCB Layout (EPT210021C)

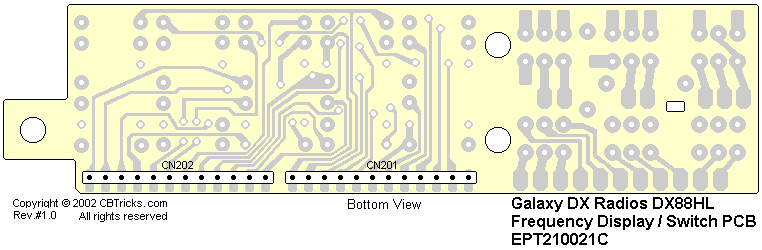

Trace Layout
NOTE: The EPT210021C board uses Common Anode LED's.
           This PCB is used in radios with the EPT210014C / EPT210014D counter modules.



Ref#
Description
MFR. Part No.


DISPLAY P.C.B. EPT210021C

#MT-115A1-P02



DISPLAY & SW P.C.B 97x24x1.6tmm (S)

EPT210021C

Switch

Ref#
Description
MFR. Part No.

R.B.

PUSH SW SPPH21226A

EWPS33033X

NB/ANL

PUSH SW SPPH21226A

EWPS33033X

Freq. ON

PUSH SW SPPH21226A

EWPS33033X

+10KHz

PUSH SW SPPH21226A

EWPS33033X

Power

PUSH SW SPPH21226A

EWPS33033X

Band

PUSH SW SPPH21226A

EWPS33033X

Connectors

Ref#
Description
MFR. Part No.

CN201

PCB CONNECTOR/S 12P PH=2

EX07N48150

CN202

PCB CONNECTOR/S 12P PH=2(WHITE)

EX07N48767

LED's

Ref#
Description
MFR. Part No.

Freq.

LED DISPLAY LSD3922 (GREEN) no longer Available

EX03N40485

  LED DISPLAY ORS 3A4GP (GREEN) (Curent Prod.)


Hardware

Ref#
Description
MFR. Part No.
Counter
ACRY WINDOW ORANGE
PT2100030B

Push SW

PUSH BUTTON CHROM

PT2100020A
