Galaxy DX Radios DX88HL
Documentation Project
CBTricks.com

Main PCB (EPT360014B) (EPT360014C)

DIAGRAMS
    EPT360014B Production up to end of 2002

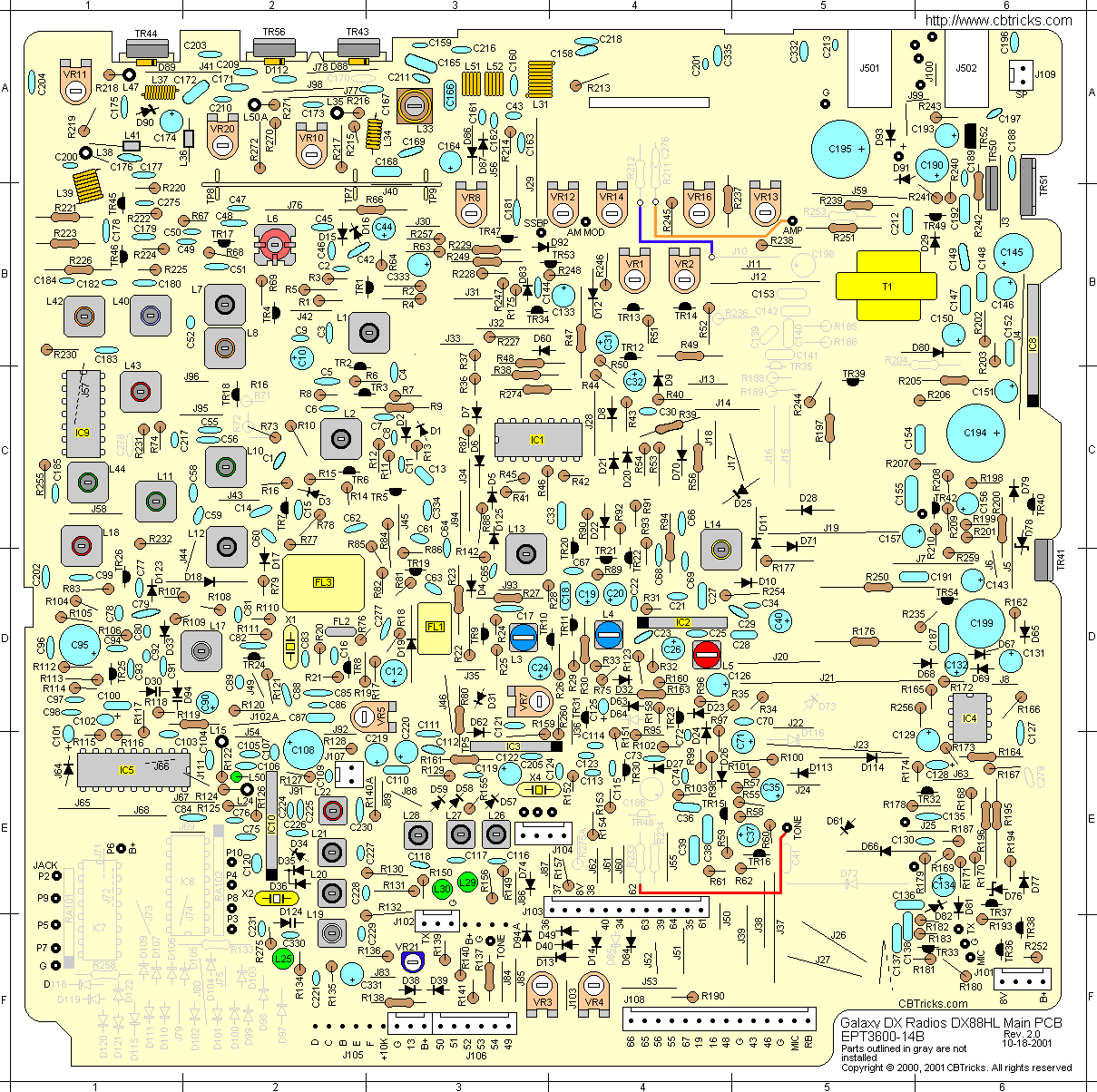

    Main PCB Parts Layout Top View (EPT360014B)

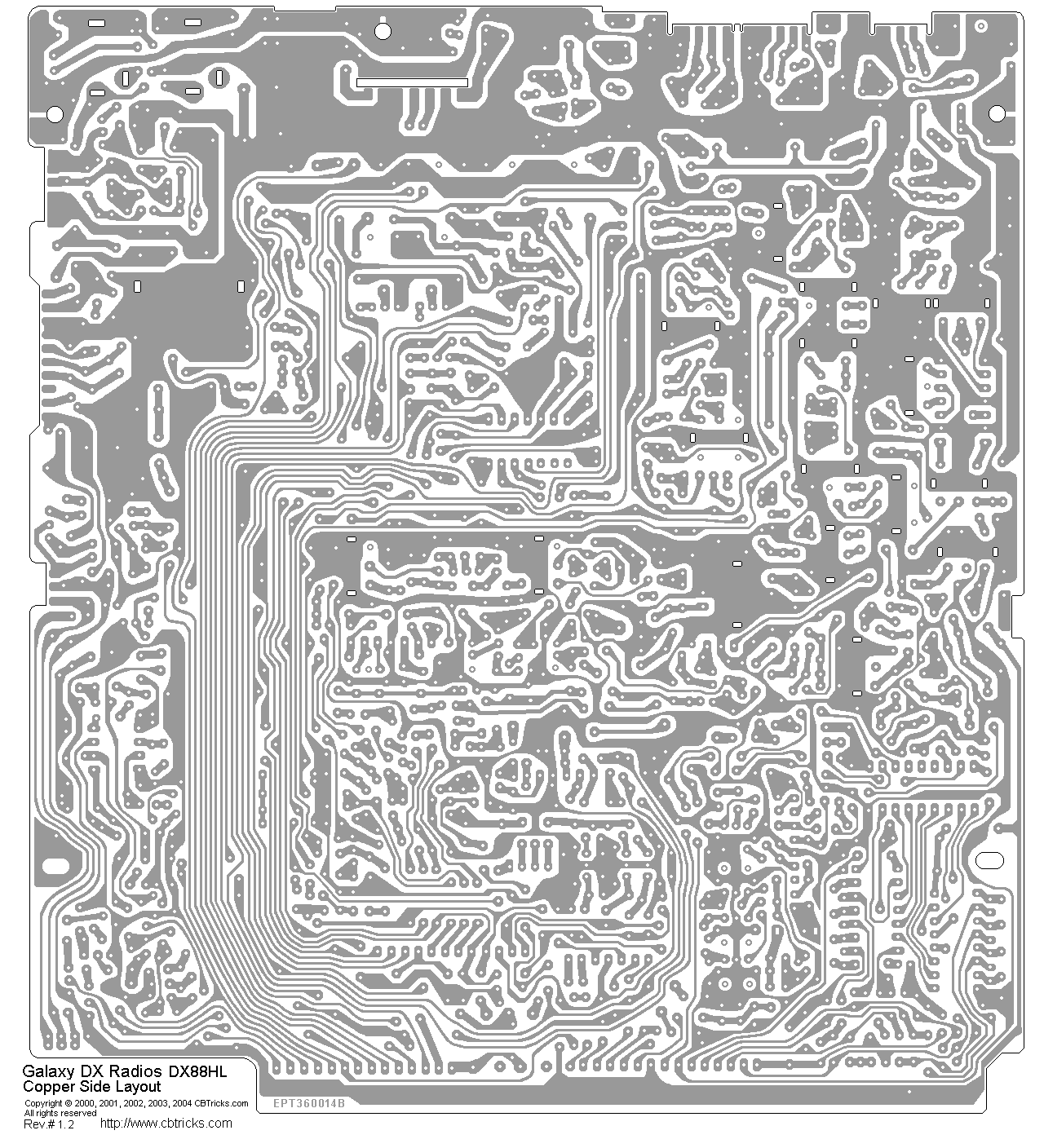

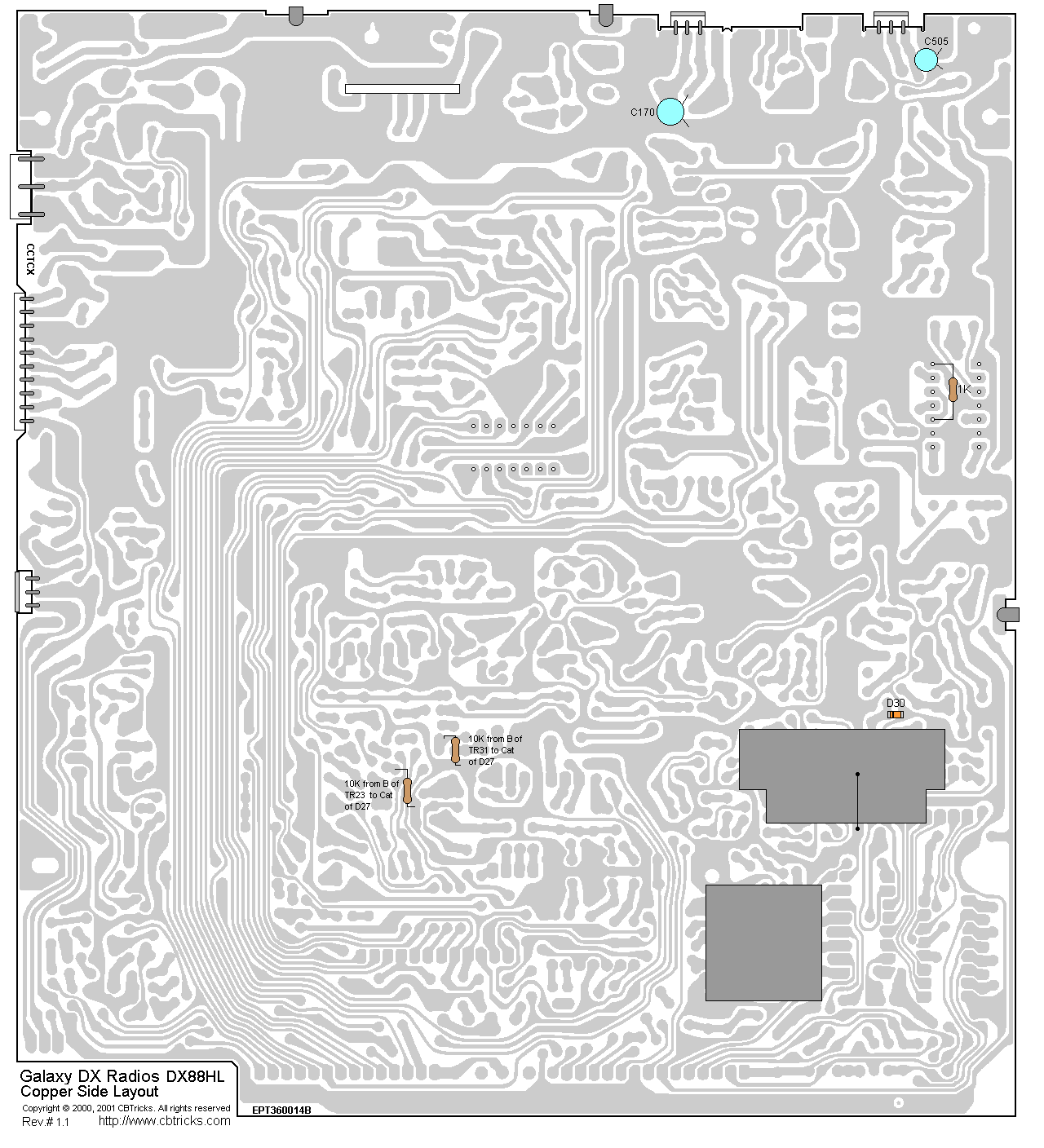

    Main PCB Copper Side Bottom View (EPT360014B)
    Main PCB Parts Layout Bottom View (EPT360014B)

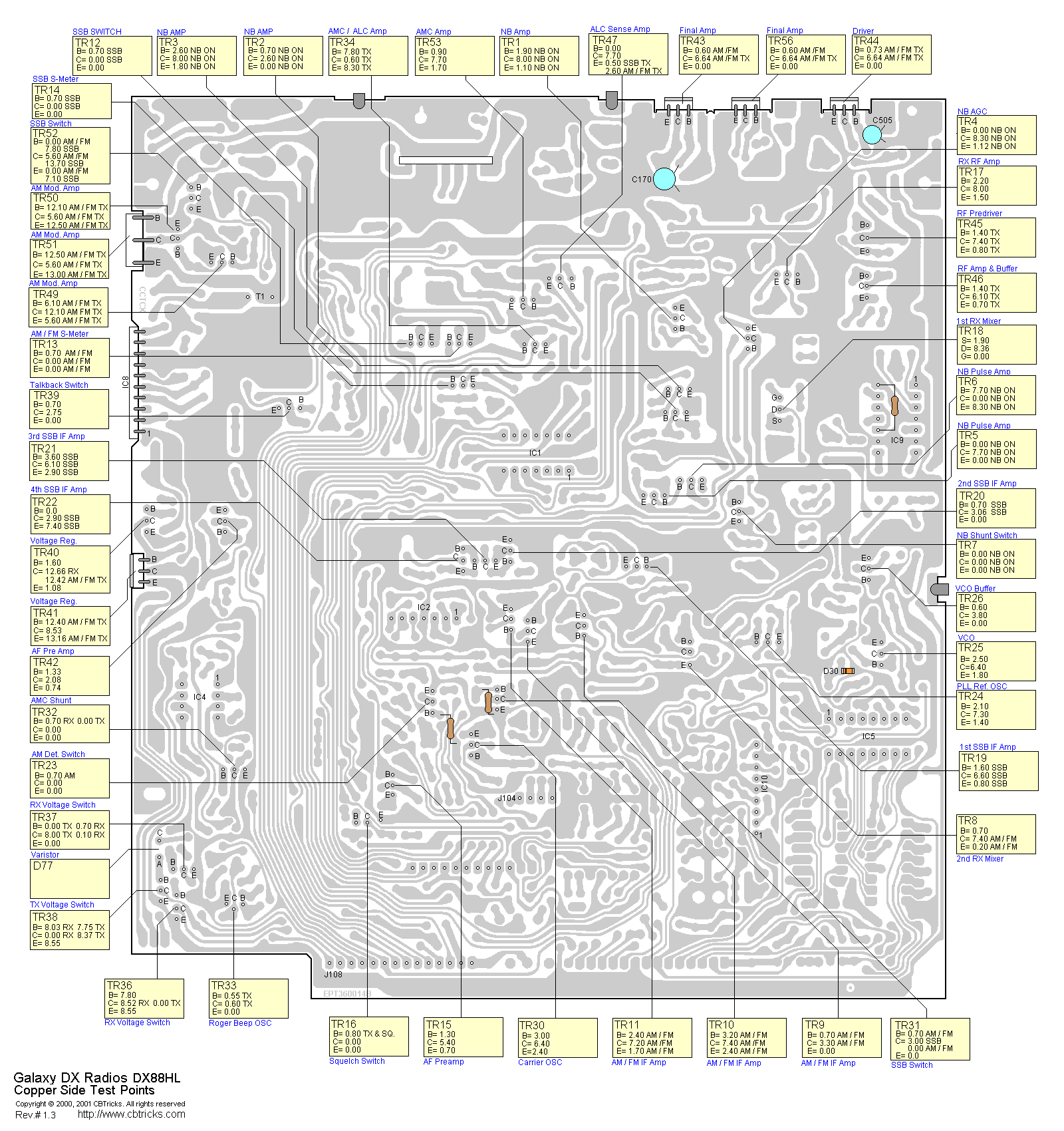

    Main PCB Test points Bottom View (EPT360014B)

    EPT360014C Current Production

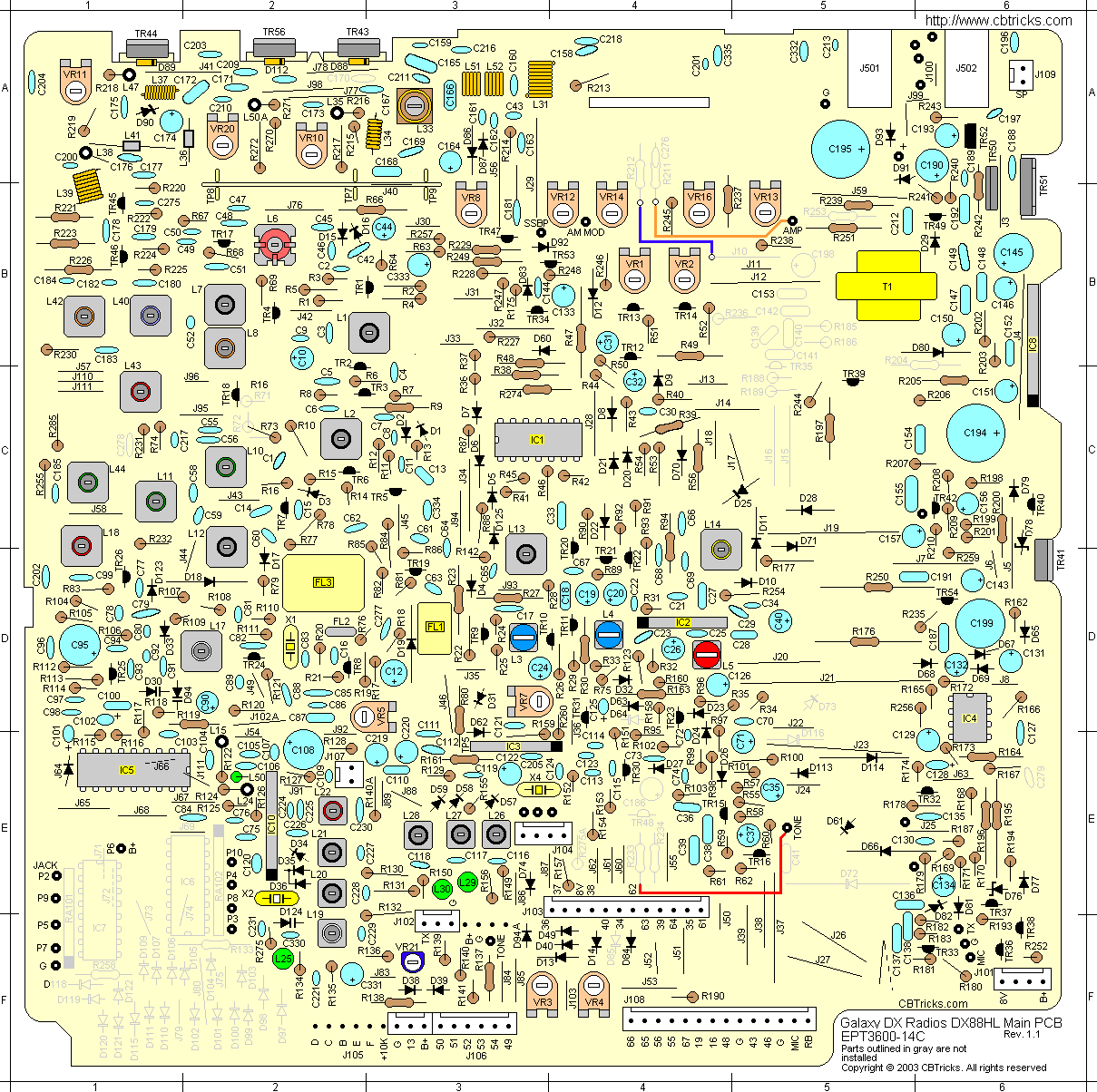

    Main PCB Parts Layout Top View (EPT360014C)
    Main PCB Parts Layout Bottom View (EPT360014C)

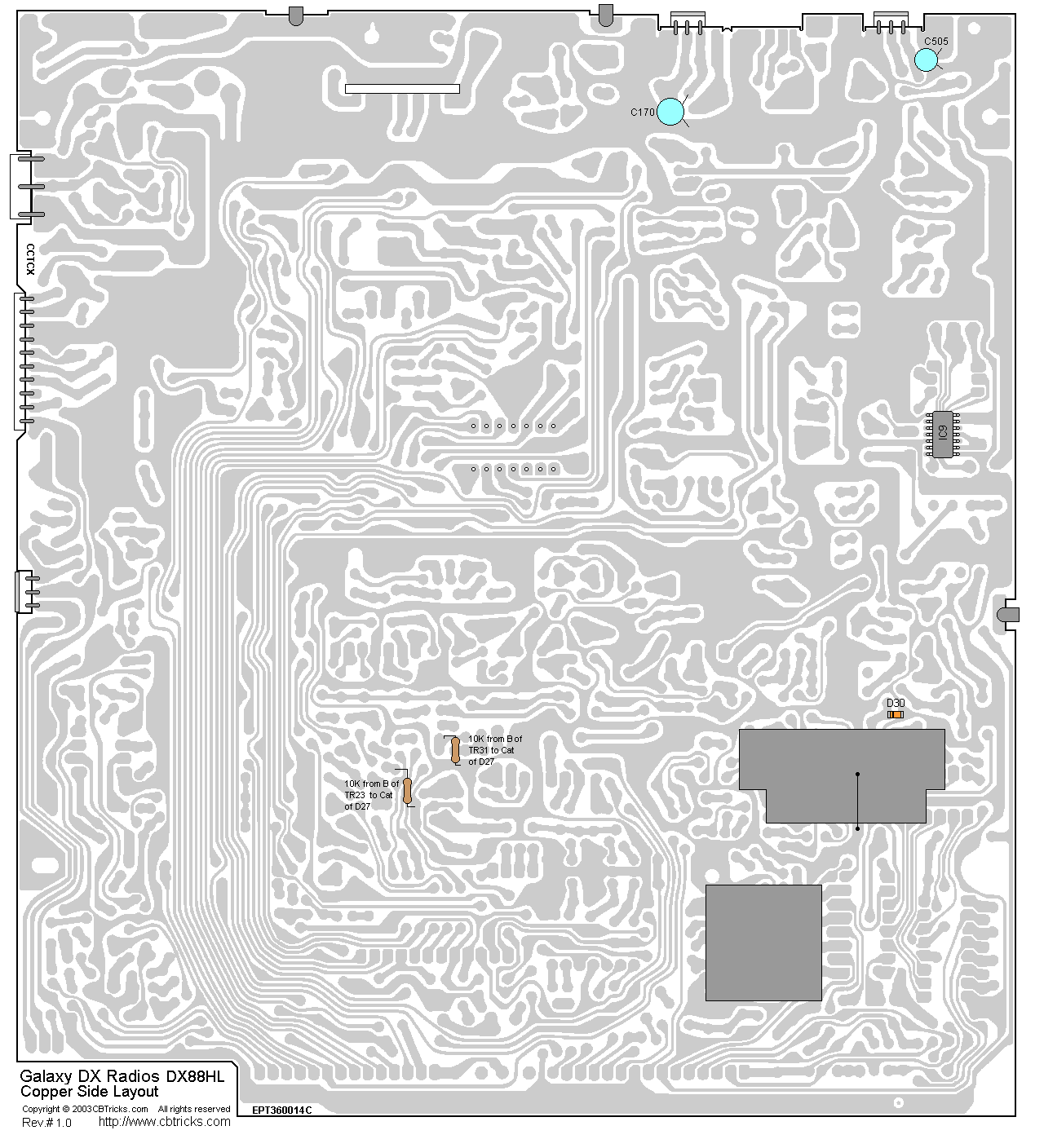

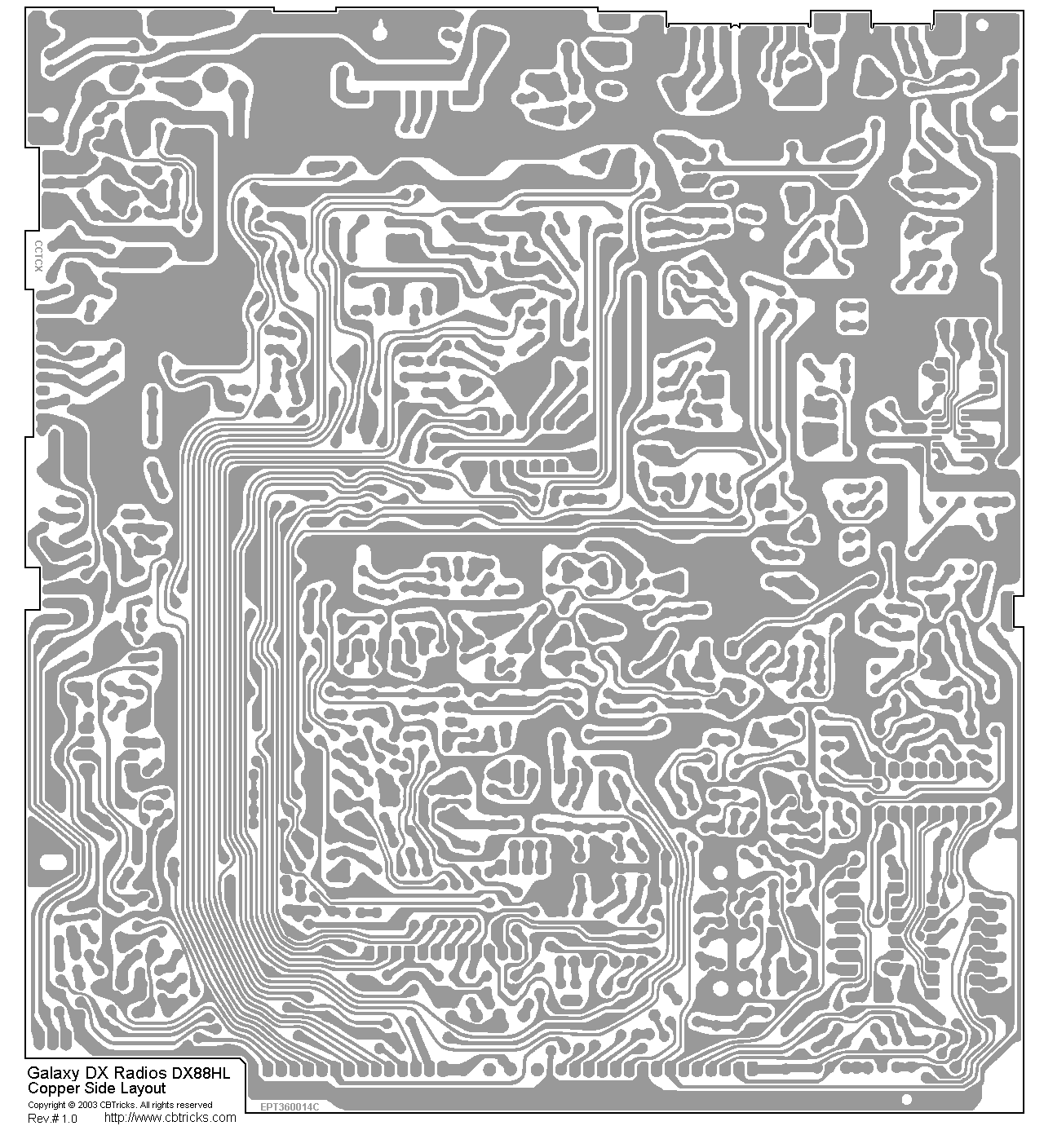

    Main PCB Copper Side View (EPT360014C)

PARTS LISTS Top Side
    Capacitors
    Coils, Transformers, Crystals, Filters
    Resistors
    IC's, Transistors
    Diodes
    Wire and Jumpers

PARTS LIST Bottom Side
    Copper Side Parts

NOTES:
     See: Galaxy DX Radios General Section Notes
