Galaxy
DX Radios DX919
Documentation Project
CBTricks.com

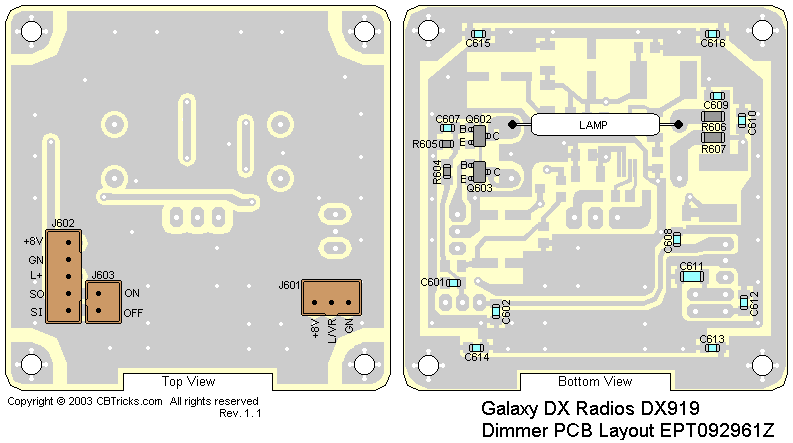

Dimmer PCB Layout (EPT092961Z)
Trace Layouts

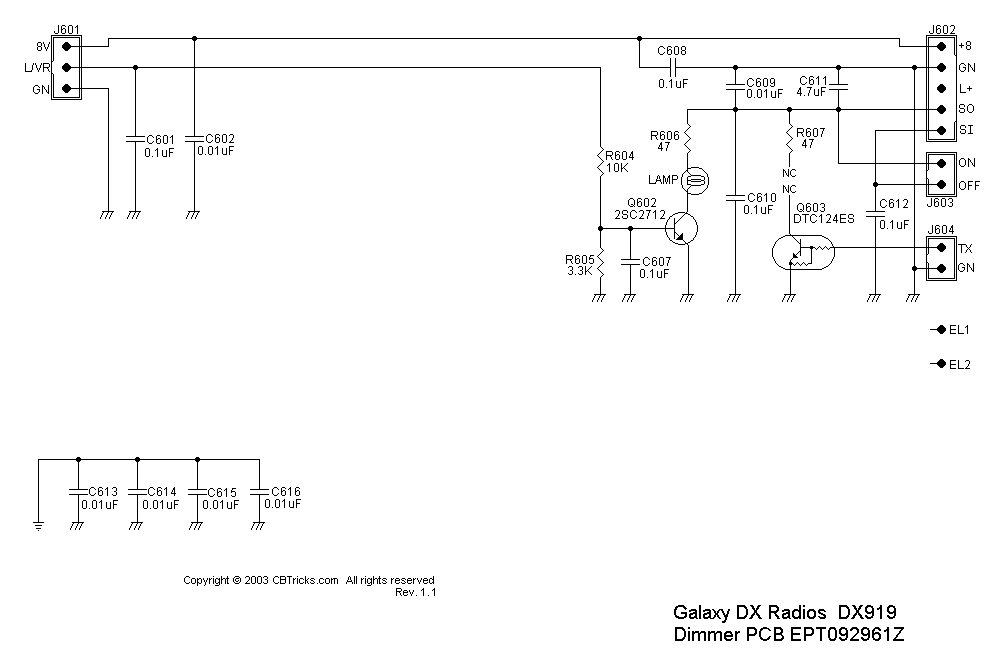

Schematic
Ref#
|
Description |
MFR. Part No. |
DIMMER PCB EPT092961Z Complete with Components |
#T-155-P06 |
|
DIMMER PCB 46x46x1.6tmm(d) |
EPT092960Z |
Resistors
Ref#
|
Description |
MFR. Part No. |
R604 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R605 |
CHIP/F/R (SMD) 3.3K OHM 0.1W |
RCY013324Z |
R606 |
CHIP/F/R (SMD) 47 OHM 1/4W |
RCY144704Z |
R607 |
CHIP/F/R (SMD) 47 OHM 1/4W |
RCY144704Z |
Capacitors
Ref#
|
Description |
MFR. Part No. |
C601 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C602 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C607 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C608 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C609 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C610 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C611 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
C612 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C613 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C614 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C615 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C616 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
Transistors
Ref#
|
Description |
MFR. Part No. |
Q602 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q603 |
T/R (SMD) DTC124EUAT106 |
TYDTC124EA |
Lamps
Ref#
|
Description |
MFR. Part No. |
LAMP |
LAMP 0.05 12V |
EX02N40230 |
Connectors
Ref#
|
Description |
MFR. Part No. |
J601 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
J602 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
J603 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Hardware
Ref#
|
Description |
MFR. Part No. |
PCB |
SET SCREW T3x6-2mm (4) |
JS053006TN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
