Galaxy
DX Radios DX919
Documentation Project
CBTricks.com

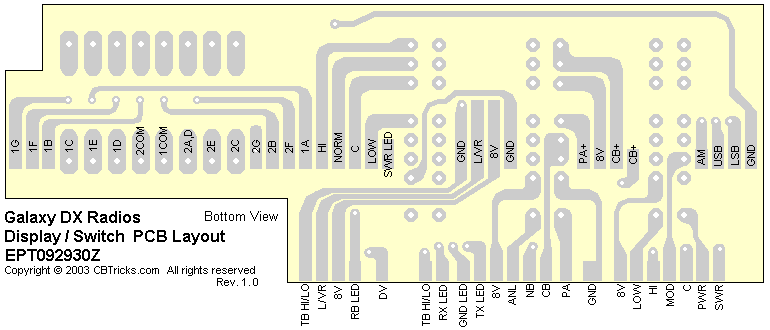

Display / Switch PCB
Layout (EPT092930Z)
Trace Layouts
Ref#
|
Description |
MFR. Part No. |
DISPLAY EPT092930Z Complete with Components |
#T-145W-P03 |
|
DISPLAY PCB 81x30x1.6tmm (d) |
EPT092930Z |
Resistors
Ref#
|
Description |
MFR. Part No. |
R301 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R302 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R303 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R304 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R305 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R306 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R307 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
R308 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R309 |
CHIP/F/R (S.M.D) 22K OHM 0.1W |
RCY012234Z |
R310 |
CHIP/F/R(SMD) 2.2K OHM 0.1W |
RCY012224Z |
Diodes
Ref#
|
Description |
MFR. Part No. |
D301 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
D302 |
DIODE (S.M.D) 1SS355 |
EDSS00355Y |
LED's
Ref#
|
Description |
MFR. Part No. |
RED/GREEN TX/RX(LED201) |
LED LAMPS (SMD) KM-23ESGC |
EX01Y40114 |
RB/SWR(LEDTX) |
LED LAMPS (SMD) KM-23ESGC |
EX01Y40114 |
|
LED DISPLAY TX-566 (RED)L=11.5 |
EX03N40419 |
Switch
Ref#
|
Description |
MFR. Part No. |
HI/OFF/LO |
SLIDE SW 3N DD/PWR |
EWSL31027K |
NB/CB/PA |
SLIDE SW 3N DD/PWR |
EWSL31027K |
SWR/M |
SLIDE SW 3N DD/PWR |
EWSL31027K |
Hardware
Ref#
|
Description |
MFR. Part No. |
Slide SW |
SET SCREW M2.6x0.45Px4 (6) |
JS052604MN |
|
SW CHASSIS |
MTDX55042X |
