Galaxy DX Radios DX919
Documentation Project

CBTricks.com

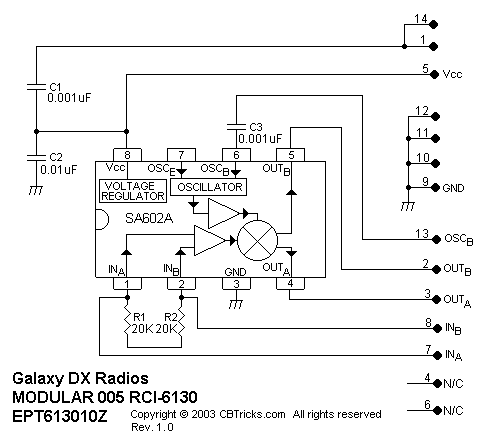

MODULAR 005 RCI-6130 Schematic Diagram


Copyright © 2003 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
