Galaxy DX Radios DX919
Documentation Project

CBTricks.com

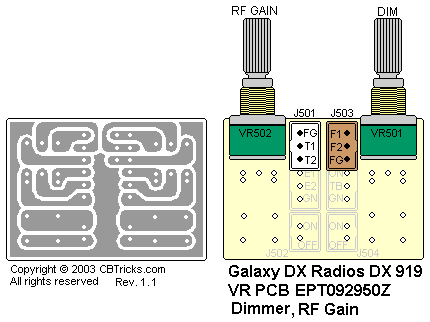

VR PCB, Dimmer / RF Gain (EPT092950Z)

Ref#

Description

MFR. Part No.



VR PCB (Dimmer / RF Gain) EPT092950Z
Complete with Components

#T-145W-P05



VR P.C.B. 32x24x1.6tmm(S)

EPT092950Z

Potentiometers

Ref#

Description

MFR. Part No.

VR501

VR 5KB(RK097111011E)     (DIMMER)

RV50203525

VR502

VR 1KB(RK097111012C)     (RF GAIN)

RV10203528

Connectors

Ref#

Description

MFR. Part No.

J501

PCB CONNECTOR/S 3P PH=2MM (WHITE)

EX07W48824

J503

PCB CONNECTOR/S 3P PH=2MM

EX07N48350
