Galaxy
DX Radios DX929
Documentation Project
CBTricks.com

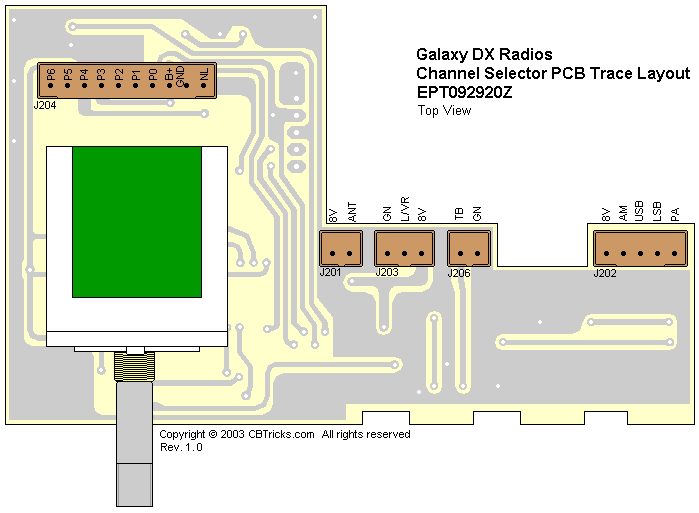

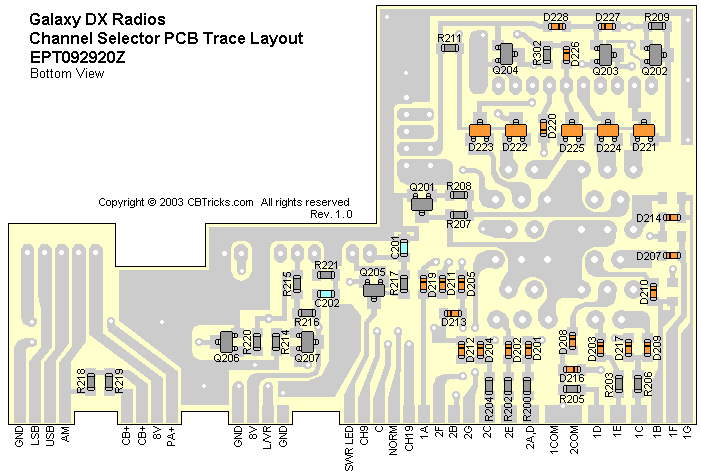

Channel Selector PCB
Layout (EPT092920Z)
Trace Layout
|
Ref#
|
Description |
MFR. Part No. |
|
|
ROTARY SW EPT092920Z Complete with Components |
#T-145W-P02 |
|
|
ROTARY SW PCB 80x49x1.6tmm (d) |
EPT092920Z |
Resistors
|
Ref#
|
Description |
MFR. Part No. |
|
R201 |
CHIP/F/R (SMD) 330 OHM 0.1W |
RCY013314Z |
|
R202 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R203 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R204 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R205 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R206 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R207 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R210 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R214 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R215 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
|
R218 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R219 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R220 |
CHIP/F/R (SMD) 68K OHM 0.1W |
RCY016834Z |
|
R221 |
CHIP/F/R (SMD) 6.8K OHM 0.1W |
RCY016824Z |
Capacitors
|
Ref#
|
Description |
MFR. Part No. |
|
C201 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C202 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
Diodes
|
Ref#
|
Description |
MFR. Part No. |
|
D201 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D202 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D203 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D204 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D205 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D206 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D207 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D208 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D209 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D210 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D211 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D212 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D213 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D214 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D215 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D216 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D217 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D218 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D219 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D220 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D221 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
|
D222 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
|
D223 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
|
D224 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
|
D225 |
DIODE (SMD) 1SS181-TE85L |
EDSS00181Y |
|
D226 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D227 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D228 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Transistors
|
Ref#
|
Description |
MFR. Part No. |
|
Q201 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
|
Q202 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
|
Q203 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
|
Q204 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
|
Q205 |
TRANSISTOR (SMD) RN2403-TE85L |
TYZRN2403Z |
|
Q206 |
TRANSISTOR (SMD) RN1403-TE85L |
TYZRN1403Z |
|
Q207 |
TRANSISTOR (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Connectors
|
Ref#
|
Description |
MFR. Part No. |
|
J201 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J202 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
|
J203 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J204 |
PCB CONNECTOR/S 10P PH=2 |
EX07N48209 |
|
J205 |
JUMPER WIRE 7x10x7mm |
WX01070710 |
|
J206 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Switch
|
Ref#
|
Description |
MFR. Part No. |
|
ROTARY SW GPS-0668 |
EWRT32059S |
