Galaxy
DX Radios DX929
Documentation Project
CBTricks.com
Dimmer / EL PCB Layout
(EPT092961Z)

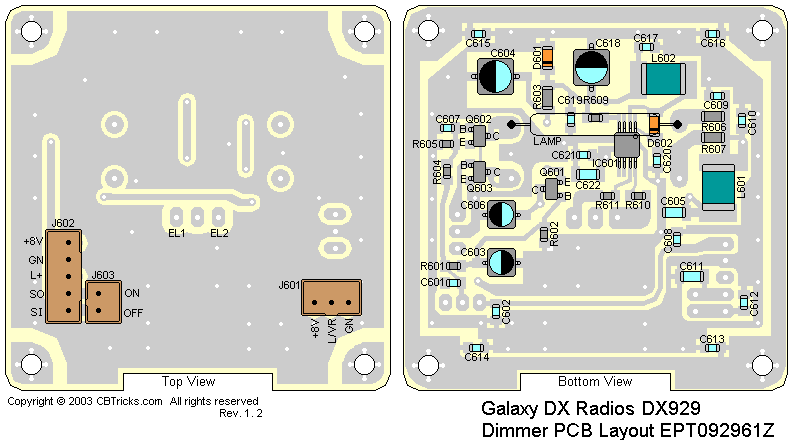

Trace Layouts

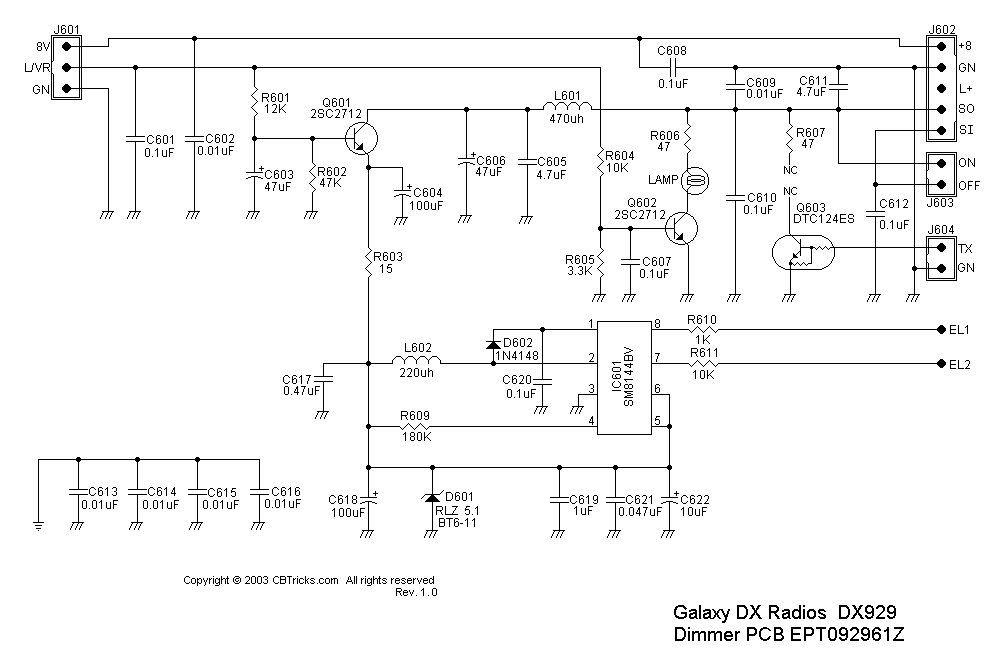

Schematic
|
Ref#
|
Description |
MFR. Part No. |
|
|
DIMMER PCB EPT092961Z |
#T-145W-P06 |
|
|
METER P.C.B. 46x46x1.6tmm (d) |
EPT092961Z |
Resistors
|
Ref#
|
Description |
MFR. Part No. |
|
R601 |
CHIP/F/R (SMD) 12K OHM 0.1W |
RCY011234Z |
|
R602 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R603 |
CHIP/F/R (SMD) 15 OHM 1/4W |
RCY141504Z |
|
R604 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R605 |
CHIP/F/R (SMD) 3.3K OHM 0.1W |
RCY013324Z |
|
R606 |
CHIP/F/R (SMD) 47 OHM 1/4W |
RCY144704Z |
|
R607 |
CHIP/F/R (SMD) 47 OHM 1/4W |
RCY144704Z |
|
R609 |
CHIP/F/R (SMD) 180K OHM 0.1W |
RCY011844Z |
|
R610 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R611 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
Capacitors
|
Ref#
|
Description |
MFR. Part No. |
|
C601 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C602 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C603 |
E/C (SMD) 47UF 16WV Z |
CEY164767Z |
|
C604 |
E/C (SM.D) 100UF 25WV Z |
CEY251077Z |
|
C605 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
|
C606 |
E/C (SMD) 47UF 16WV Z |
CEY164767Z |
|
C607 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C608 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C609 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C610 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C611 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
|
C612 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C613 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C614 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C615 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C616 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C617 |
CHIP/C (SMD) 0.47UF 25WV Z Y5V |
CK2474AB7R |
|
C618 |
E/C (SM.D) 100UF 25WV Z |
CEY251077Z |
|
C619 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
|
C620 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
|
C621 |
CHIP/C (SMD) 0.047UF 50WV K X7R |
CK1473AB5X |
|
C622 |
T/C (SMD) 10UF 16WV M ('A'CASE) |
CTY161066A |
Inductors
|
Ref#
|
Description |
MFR. Part No. |
|
L601 |
CHOKE COIL (SMD) 470UH TE K |
YCTLI4774E |
|
L602 |
CHOKE COIL (SMD) 220UH TE K |
YCTLI2274E |
Transistors
|
Ref#
|
Description |
MFR. Part No. |
|
Q601 |
TRANSISTOR(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q602 |
TRANSISTOR(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q603 |
T/R (SMD) DTC124EUAT106 |
TYDTC124EA |
Integrated Circuits
|
Ref#
|
Description |
MFR. Part No. |
|
IC601 |
I.C. (SMD) SM8144BV-E2 8PIN |
YNSN8144BV |
Diodes
|
Ref#
|
Description |
MFR. Part No. |
|
D601 |
ZENER DIODE (SMD) RLZ5.1BT6-11 |
EDZD05519Y |
|
D602 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
Lamps
|
Ref#
|
Description |
MFR. Part No. |
|
LAMP |
LAMP 0.05 12V |
EX02N40230 |
Connectors
|
Ref#
|
Description |
MFR. Part No. |
|
J601 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J602 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
|
J603 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
