Galaxy
DX Radios DX929
Documentation Project
CBTricks.com

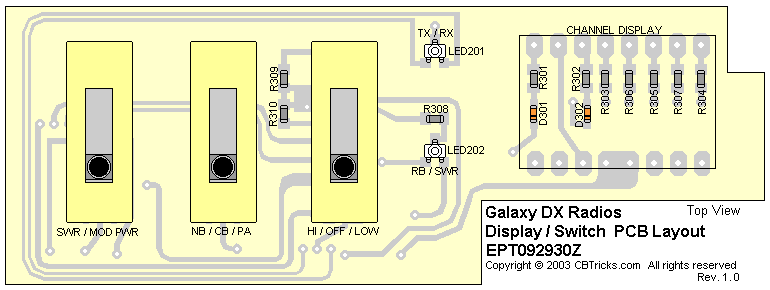

Display / Switch PCB
Layout (EPT092930Z)

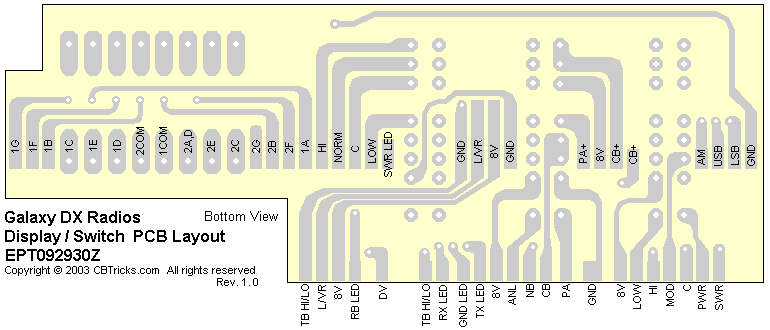

Trace Layouts
|
Ref#
|
Description |
MFR. Part No. |
|
DISPLAY EPT092930Z Complete with Components |
#T-145W-P03 |
|
|
DISPLAY PCB 81x30x1.6tmm(d) |
EPT092930Z |
Resistors
|
Ref#
|
Description |
MFR. Part No. |
|
R301 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R302 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R303 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R304 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R305 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R306 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R307 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R308 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R309 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R310 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
Diodes
|
Ref#
|
Description |
MFR. Part No. |
|
D301 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D302 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
LED's
|
Ref#
|
Description |
MFR. Part No. |
|
LED201 |
LED LAMPS (SMD) KM-23ESGCRED/GREEN
2 TX |
EX01Y40114 |
|
LED202 |
LED LAMPS (SMD) KM-23ESGC
RED/GREEN 2 TX |
EX01Y40114 |
|
|
LED DISPLAY TX-566 (RED)L=11.5 |
EX03N40419 |
Switch
|
Ref#
|
Description |
MFR. Part No. |
|
HI/OFF/LO |
SLIDE SW 3N |
EWSL31027K |
|
NB/CB/PA |
SLIDE SW 3N |
EWSL31027K |
|
SWR/MDD/PWR |
SLIDE SW 3N |
EWSL31027K |
Hardware
|
Ref#
|
Description |
MFR. Part No. |
|
Slide SW |
SET SCREW M2.6x0.45Px4 (12) |
JS052604MN |
|
|
SW CHASSIS |
MTDX55042X |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
