Galaxy
DX Radios DX939
Documentation Project
CBTricks.com

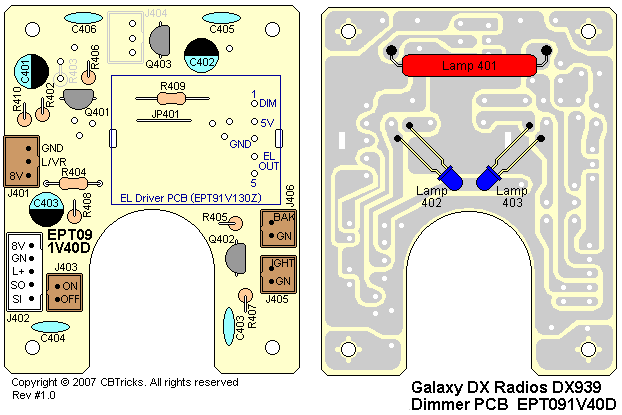

Dimmer PCB (EPT091V40D)
Trace Layout
Ref#
|
Description |
MFR. Part No. |
|
DIMMER (DX-939) EPT091V40D |
#MT-155E-P04 |
|
DIMMER PCB 52x42x1.6tmm (S) |
EPT091V40D |
Resistors
Ref#
|
Description |
MFR. Part No. |
R402 |
C/F/R 1K OHM 1/16W |
RCU161024Z |
R404 |
C/F/R 5.6K OHM 1/16W |
RCP165624Z |
R405 |
C/F/R 4.7K OHM 1/16W |
RCU164724Z |
R406 |
C/F/R 47 OHM 1/16W |
RCU164704Z |
R407 |
C/F/R 1K OHM 1/16W |
RCU161024Z |
R408 |
C/F/R 680 OHM 1/16W |
RCU166814Z |
R409 |
C/F/R 0 OHM 1/16W |
RCP160004Z |
R410 |
C/F/R 3.9K OHM 1/16W |
RCP163924Z |
Capacitors
Ref#
|
Description |
MFR. Part No. |
C401 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
C402 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
C403 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C404 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C405 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C406 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C407 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
Transistors
Ref#
|
Description |
MFR. Part No. |
Q401 |
T/R 2SC945P |
T2SC00945P |
Q402 |
T/R DTC124ESATP |
TDTC0124ES |
Q403 |
T/R DTC124ESATP |
TDTC0124ES |
Lamps and LED's
Ref#
|
Description |
MFR. Part No. |
Lamp 401 |
LAMP 0.05A 12V RED |
EX02N40229 |
Lamp 402 |
LED (BLUE) BL-BBH3V1G |
EX01N40176 |
Lamp 403 |
LED (BLUE) BL-BBH3V1G |
EX01N40176 |
Connectors
Ref#
|
Description |
MFR. Part No. |
J401 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
J402 |
PCB CONNECTOR/S 5P PH=2MM (WHITE) |
EX07W48826 |
J403 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J405 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J406 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Jumpers
Ref#
|
Description |
MFR. Part No. |
JP401 |
JUMPER WIRE 7x8MMx7 |
WX01070708 |
Hardware
Ref#
|
Description |
MFR. Part No. |
Lamp 402 |
REF LABEL |
LZZZ61587A |
|
REFRACTOR LABEL 100x10MM |
LZZZ61276Z |
