Galaxy
DX Radios DX939
Documentation Project
CBTricks.com
EL

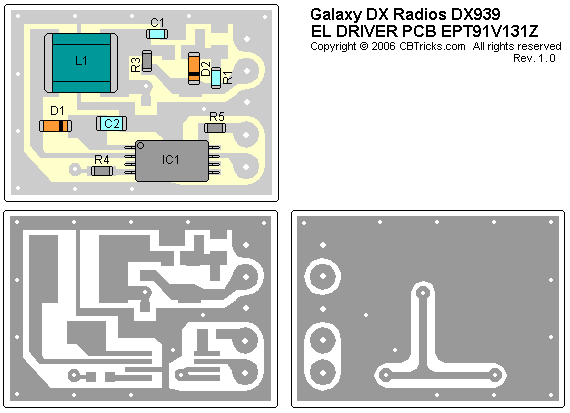

PCB (EPT91V131Z)
Parts List
Ref#
|
Description |
MFR.
Part No.
|
EL DRIVER PCB EPT91V131Z |
#T-149A-P07 |
|
EL DRIVER PCB 22x15x1.6tmm (d) |
EPT91V131Z |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R1 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
R3 |
CHIP/F/R (SMD) 0 OHM |
RCY060004Z |
R4 |
CHIP/F/R (SMD) 56K OHM |
RCY065634Z |
R5 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C1 |
CHIP/C 0.47UF 16WV Z Y5V |
CK5474AD7R |
C2 |
CHIP/C 0.1UF 50WV K X7R |
CK1104AB5X |
Integrated Circuits
Ref#
|
Description |
MFR.
Part No.
|
IC1 |
I.C. (SMD) SM8144BV-E2 8PIN |
YNSN8144BV |
Inductors
Ref#
|
Description |
MFR.
Part No.
|
L1 |
CHOKE COIL (SMD) 220UH TE K |
YCTLI2274E |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D1 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
D2 |
ZENER DIODE (SMD) RLZ5.1BT6-11 |
EDZD05519Y |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
EL DRIVER PCB-METER PCB |
PCB CONNECTOR/S 5P L=12mm PH=2.5 |
EX07N48265 |
EL DRIVER PCB-EL |
WIRE CONNECTOR/H 2P PH=2mm L=50mm |
EX07N48539 |
EL DRIVER |
PCB CONNECTOR/S 3P PH=2.54 (BLACK) |
EX07N49373 |
Hardware
Ref#
|
Description |
MFR.
Part No.
|
EL DRIVER PCB-METER PCB |
FOAM 14x14x2MM |
XZZZ90053Z |
EL DRIVERR PCB |
SHIELD HOUSING (EL) |
MT240N060X |
