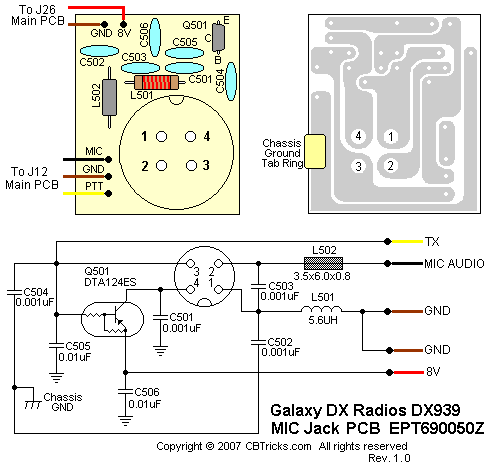

MIC PCB (EPT690050Z)
Ref# |
Description |
MFR. Part No. |
MIC P.C.B. EPT690050Z |
#T-142A-P02 |
|
MIC P.C.B. 33.5x27x1.6tmm (S) |
EPT690050Z |
Capacitors
Ref#
|
Description |
MFR. Part No. |
C501 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C502 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C503 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C504 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
C505 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C506 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
Transistors
Ref#
|
Description |
MFR. Part No. |
Q501 |
T/R DTA124ES |
TDTA0124ES |
Inductors
Ref#
|
Description |
MFR. Part No. |
L501 |
CHOKE COIL 5.6UH |
ECCHK16001 |
L502 |
BEAD COIL WBRH-3.5x6x0.8-U10 |
ECBAD18526 |
Connectors
Ref#
|
Description |
MFR. Part No. |
MIC JACK |
SCS 16 4(R) |
EX06N41020 |
Ref#
|
Description |
MFR. Part No. |
MIC MAINWIRE |
CONNECTOR/H #26L=140 PH=2.5 3P (J12)(M1O12) |
EX07N48192 |
MIC MAIN (J26) |
WIRE CONNECTOR/H L=100 PH=2 #28 2P |
EX07N48233
|
