Galaxy
DX Radios DX939
Documentation Project
CBTricks.com
MODULAR

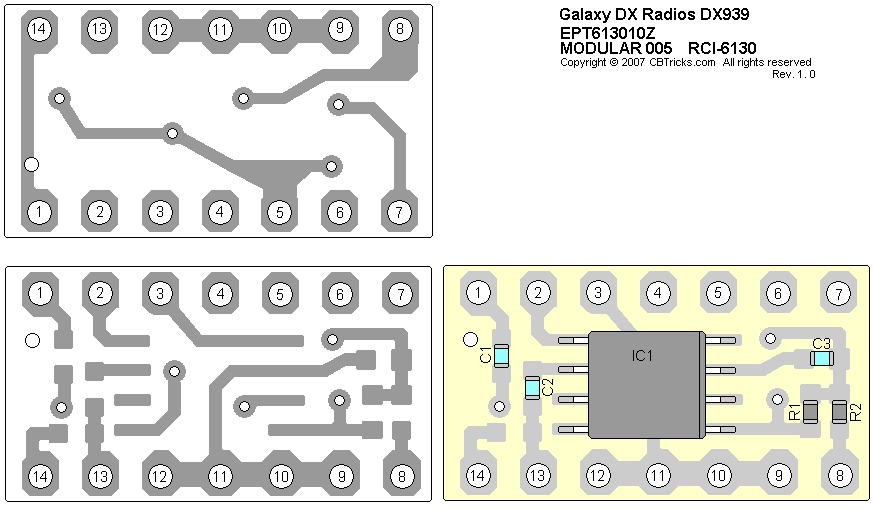

005 RCI-6130 (EPT613010Z)
Ref#
|
Description |
MFR.
Part No.
|
|
MODULAR 005 RCI 6130 |
#F005 |
|
RCI 6130 PCB 18x10x1.0tmm (S) |
EPT613010Z |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R1 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
R2 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C1 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
C2 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C3 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
Integrated Circuits
Ref#
|
Description |
MFR.
Part No.
|
IC1 |
IC (PHILIPS) SA602A 8PIN (SMD) |
YNPH00602A |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
IC PIN 049 |
GZZZ50207Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
