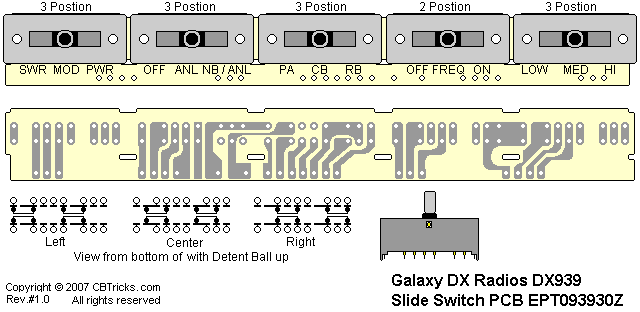

Slide Switch PCB (EPT093930Z)

Parts List

Ref#
Description
MFR. Part No.


SWITCH PCB (DX-939) EPT093930Z

#MT-155E-P03



SWITCH PCB 111x12.7x1.6tmm (S)

EPT093930Z



Ref#
Description
MFR. Part No.

FREQ DIS

SLIDE SW 2N

EWSL31026K

SWR/MOD/PWR

SLIDE SW 3N

EWSL31027K

OFF/ANL/NB ANL

SLIDE SW 3N

EWSL31027K

PA/CB/RB

SLIDE SW 3N

EWSL31027K

TONE LOW/MED/HI

SLIDE SW 3N

EWSL31027K

SLIDE SW

MASK PLATE(SW)

XZZZ90296A
