Galaxy DX Radios DX93T
Documentation Project

CBTricks.com

Frequency Conversion

Before Conversion
Shown in stock position

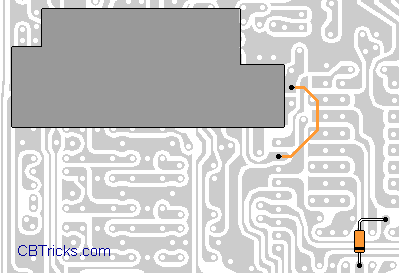

After Conversion
Shown in mod position

Frequency Conversion

1.
Remove the top cover from the unit and locate wire jumper on the bottom of the main pcb. Move the wire from it's current position to the position shown in the drawing above.
2.
Re-Assemble the unit and check All Bands for Proper operation.
