Galaxy DX Radios DX93T
Documentation Project

CBTricks.com

Main PCB Layout (EPT690010Z) (EPT690010C)

DIAGRAMS

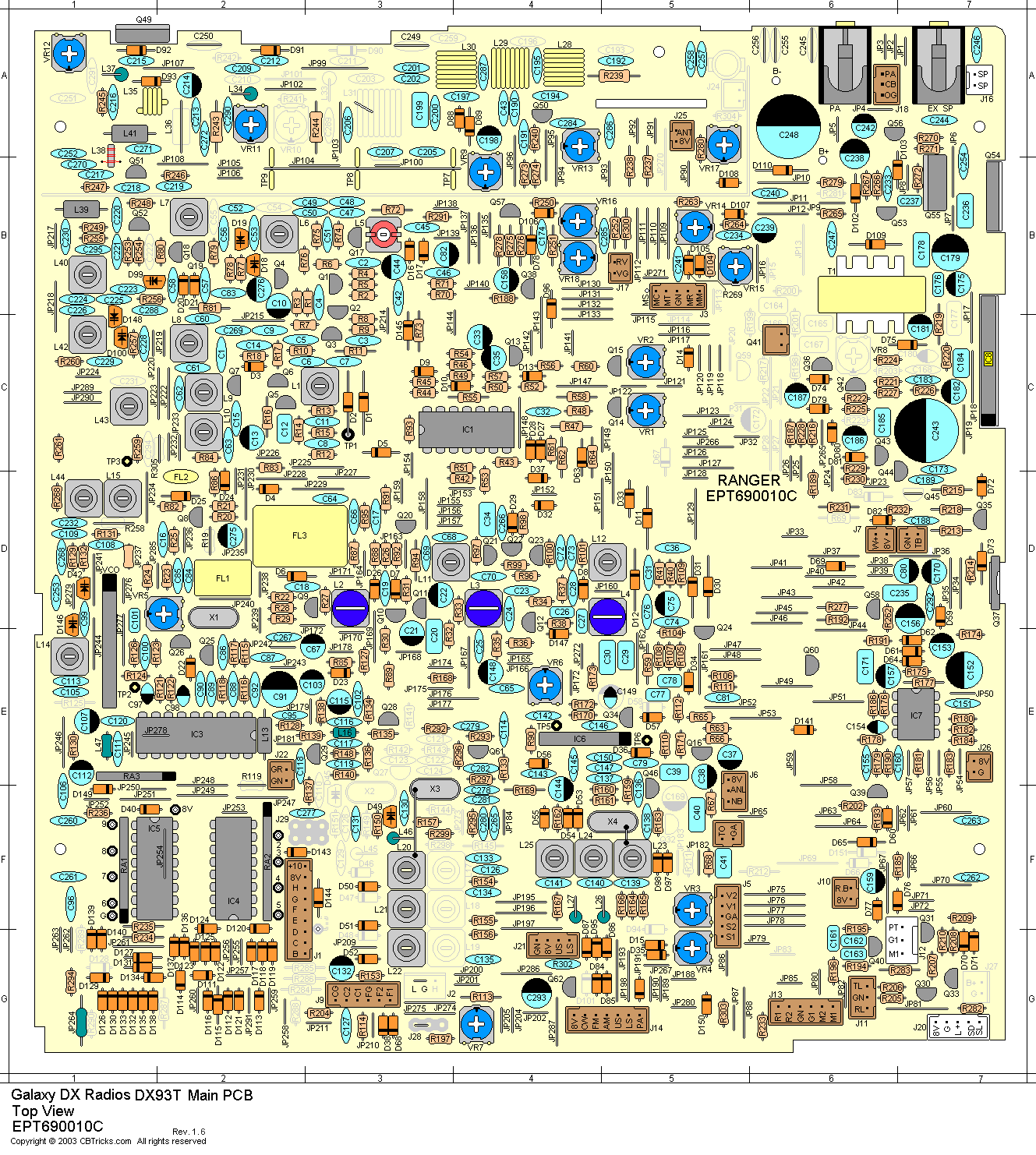

    Main PCB Parts Layout Top View (EPT690010C) Current Production

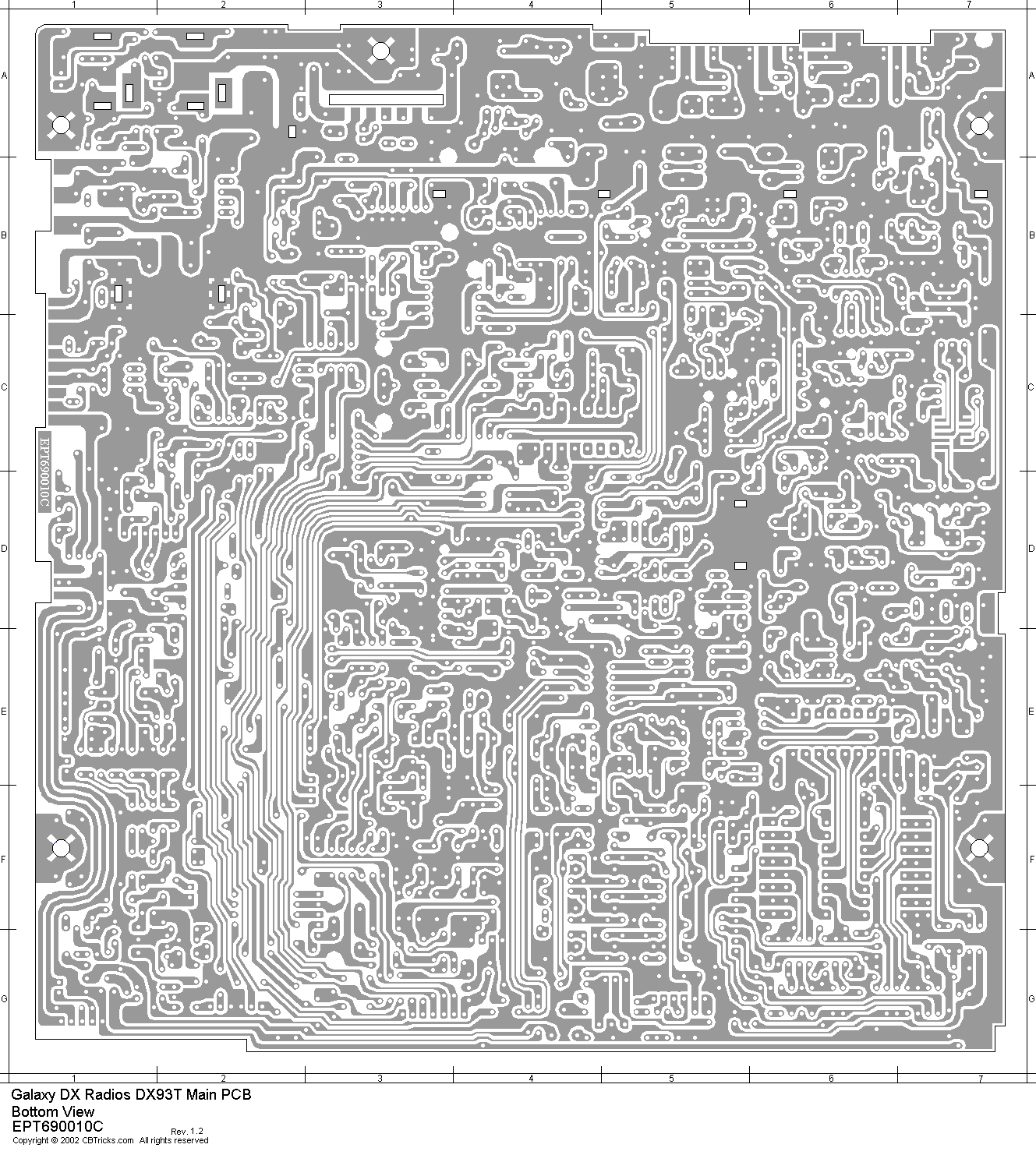

    Main PCB Copper Side View (EPT690010C) Current Production

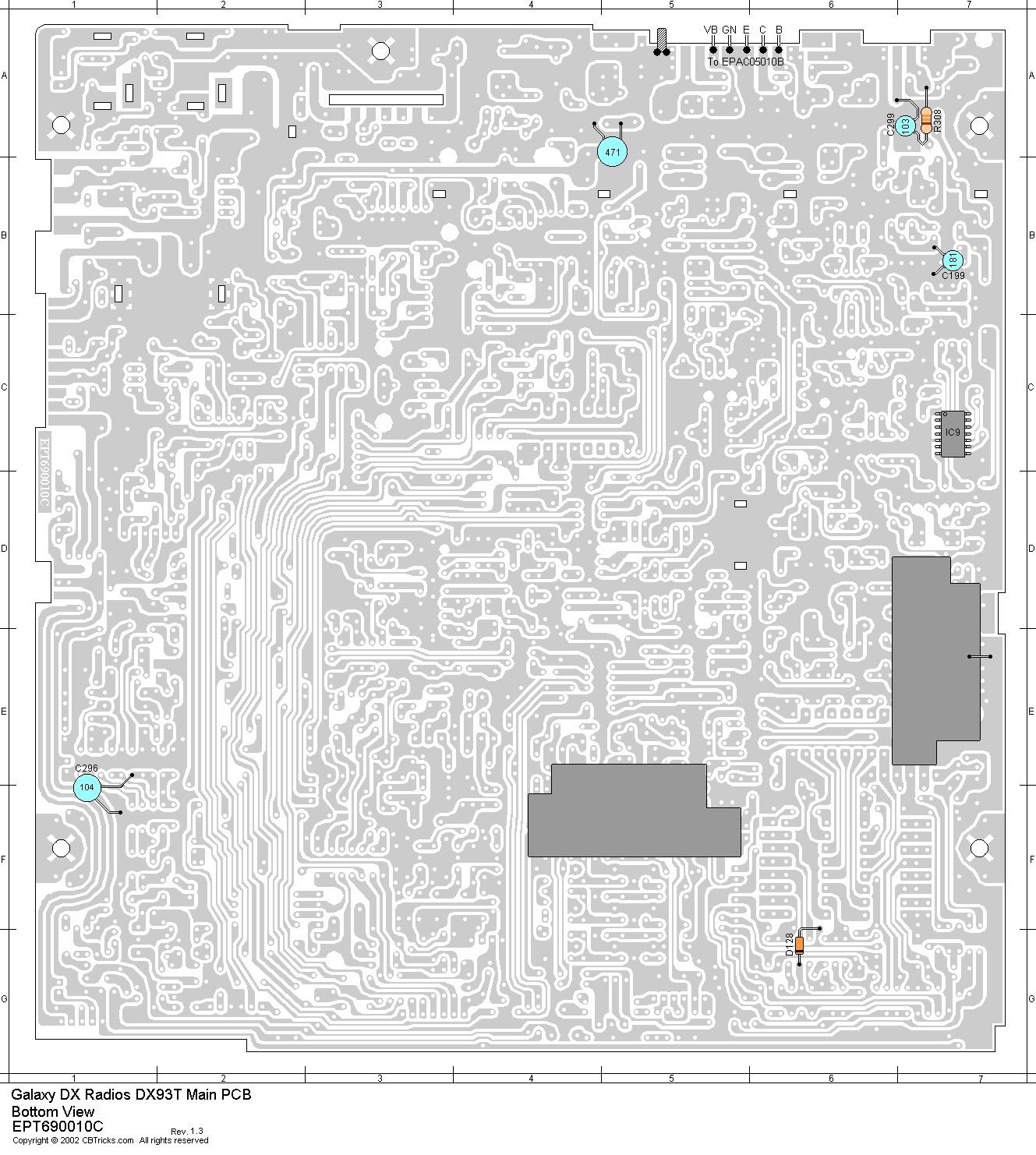

    Main PCB Parts Layout Bottom View (EPT690010C) Current Production

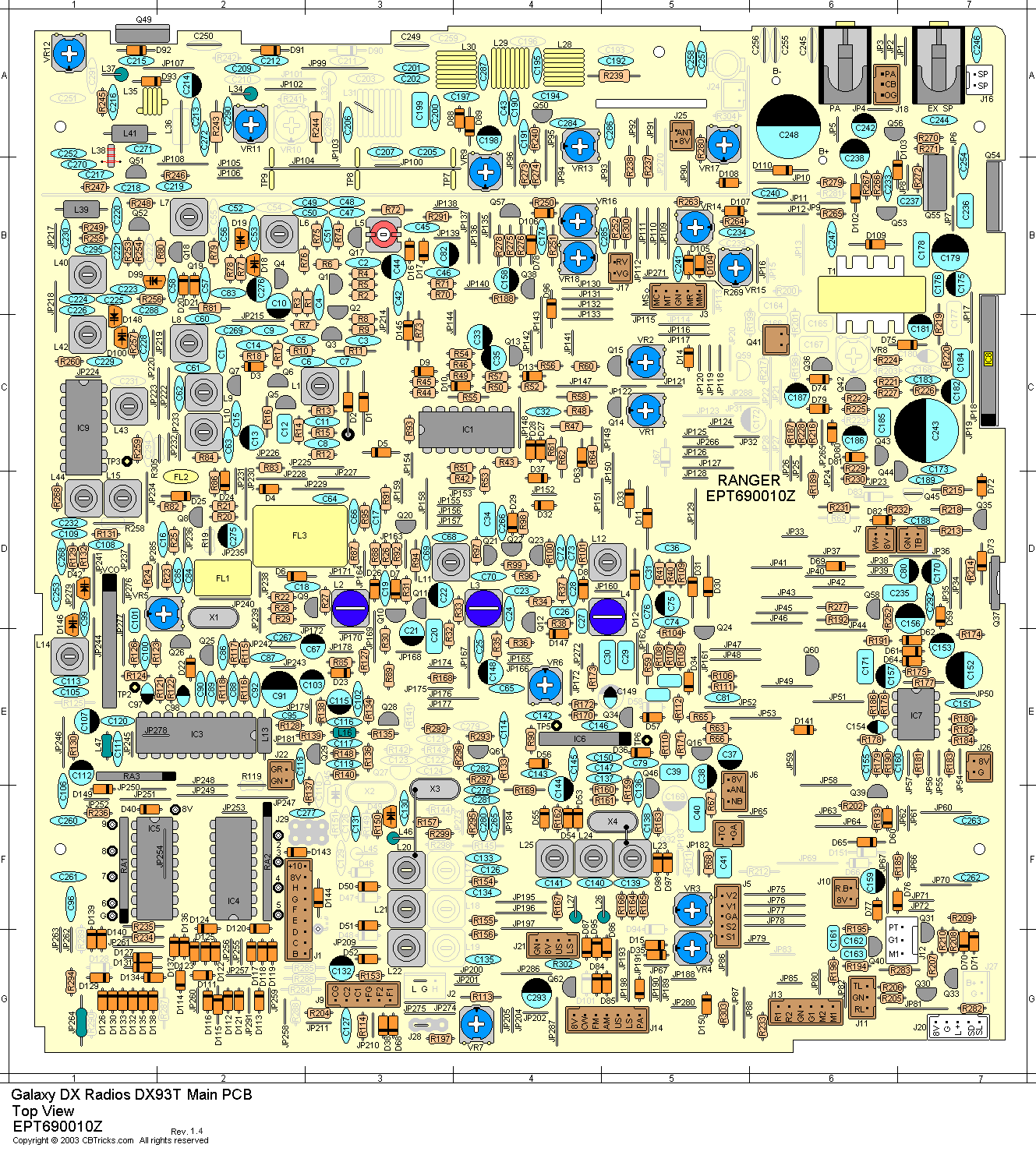

    Main PCB Parts Layout Top View (EPT690010Z) Early Production

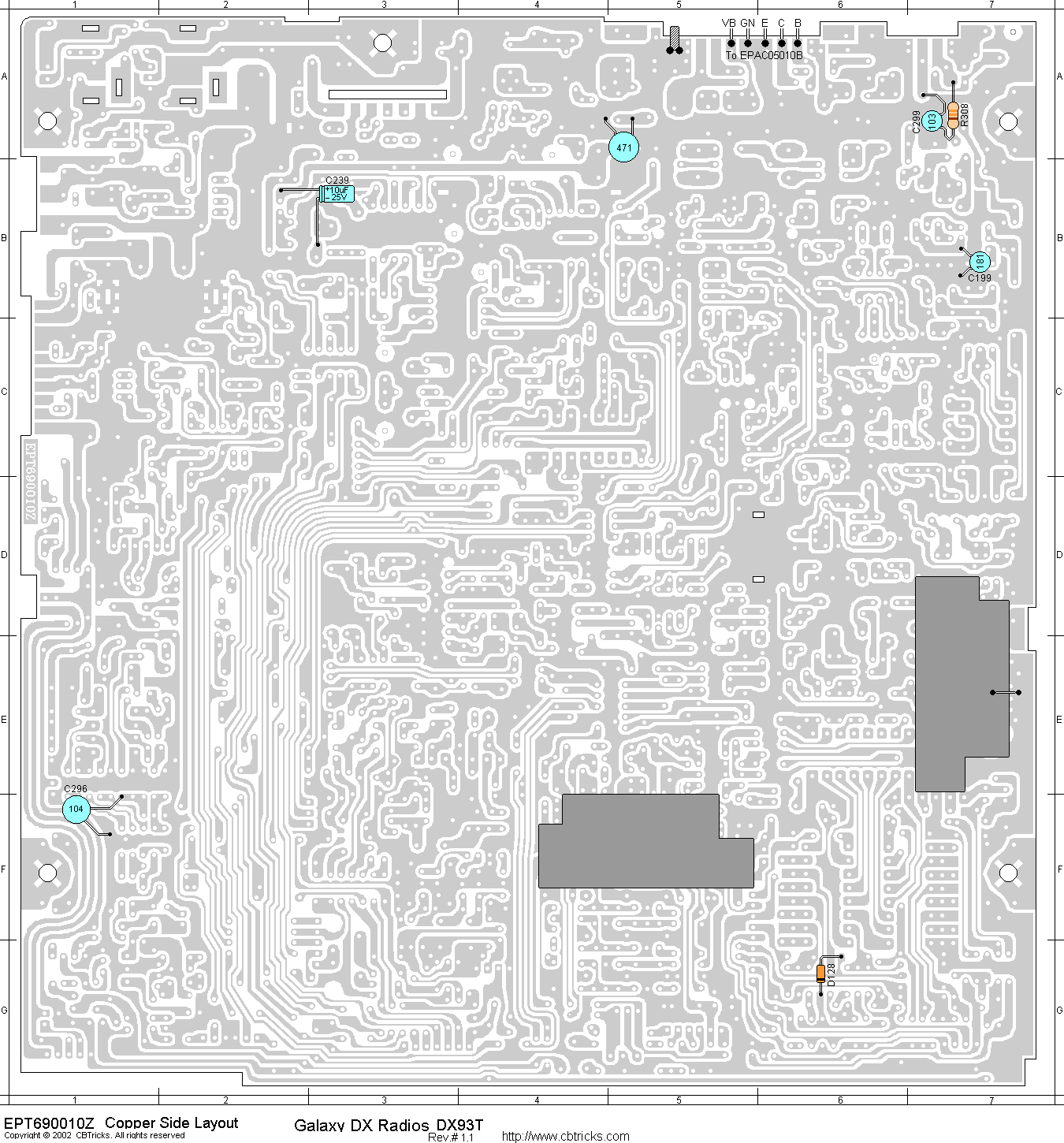

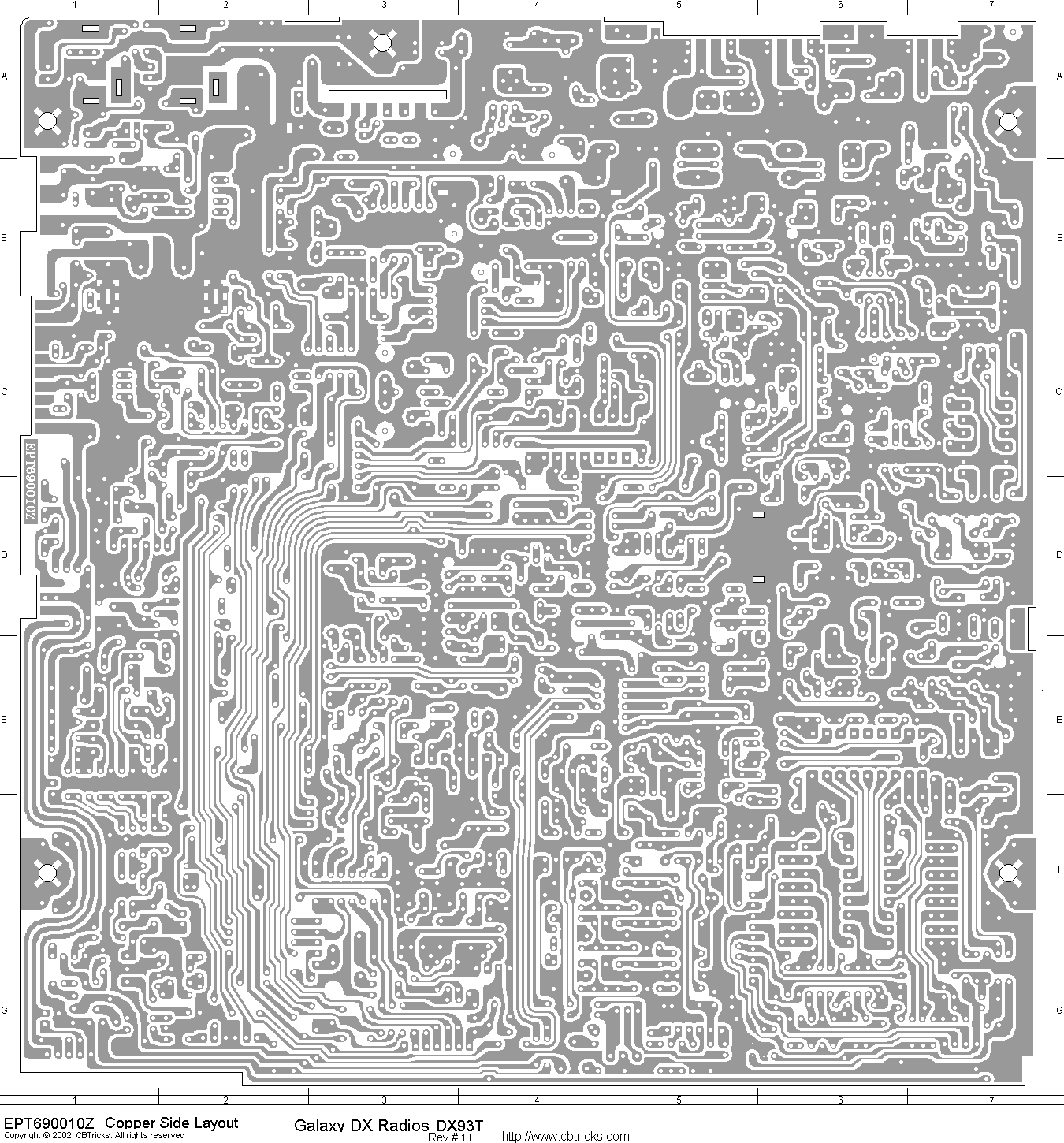

    Main PCB Copper Side View (EPT690010Z) Early Production

    Main PCB Parts Layout Bottom View (EPT690010Z) Current Production

PARTS LISTS Top Side
    Capacitors
    Coils, Transformers, Crystals, Filters
    Resistors
    Diodes
    IC's, Transistors
    Wire Jumpers, Connectors

PARTS LIST Bottom Side
    Copper Side Parts

NOTES:
     See: Galaxy DX Radios General Section Notes
              Semiconductor Datasheets Section
