Galaxy
DX Radios DX93T
Documentation Project
CBTricks.com
MOD LED PCB (EPT91V100Z)

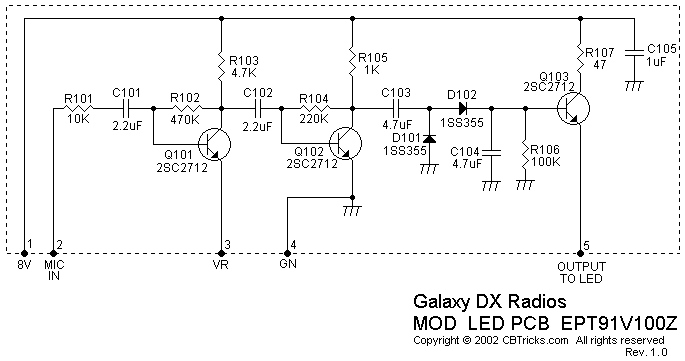

Schematic
Parts List
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R101 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R102 |
CHIP/F/R (SMD) 470K OHM 0.1W |
RCY014744Z |
R103 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
R104 |
CHIP/F/R (SMD) 220K OHM 0.1W |
RCY012244Z |
R105 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R106 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
R107 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C101 |
CHIP/C (SMD) 2.2UF 16WV Z Y5V |
CK5225AB7R |
C102 |
CHIP/C (SMD) 2.2UF 16WV Z Y5V |
CK5225AB7R |
C103 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
C104 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
C105 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D101 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D102 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Transistors
Ref#
|
Description |
MFR.
Part No.
|
Q101 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q102 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q103 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
