Galaxy DX Radios DX93T
Documentation Project

CBTricks.com

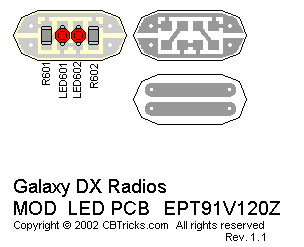

MOD LED PCB (EPT91V120Z)

Parts List

Resistors

Ref#
Description
MFR. Part No.

R601

CHIP/F/R (SMD) 1K OHM

RCY061024Z

R602

CHIP/F/R (SMD) 1K OHM

RCY061024Z

LED's

Ref#
Description
MFR. Part No.

LED601

LED LAMP (SMD) KM-24SRC-03 (RED)

EX01Y40128

LED602

LED LAMP (SMD) KM-24SRC-03 (RED)

EX01Y40128


Copyright © 2002 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
