Galaxy
DX Radios DX949
Documentation Project
CBTricks.com
MODULAR 002 P.C.B. EPF000210Z

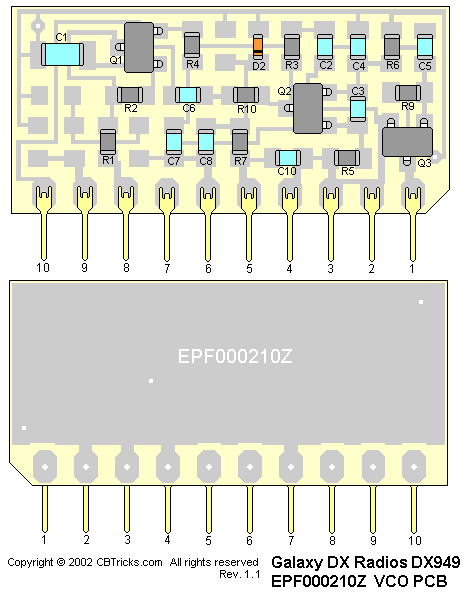

Trace Layout
Schematic Diagram
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z |
|
R2 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R3 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R4 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R5 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R6 |
CHIP/F/R (SMD) 560 OHM 0.1W |
RCY015614Z |
|
R7 |
CHIP/F/R (SMD) 3.3K OHM 0.1W |
RCY013324Z |
|
R9 |
CHIP/F/R (SMD) 220K OHM 0.1W |
RCY012244Z |
|
R10 |
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
C1 |
T/C (SMD) 1UF 16WV M |
CTY161056Z |
|
C2 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C3 |
CHIP/C (SMD) 390PF 50WV K SL |
CK1391AB5L |
|
C4 |
CHIP/C 180PF 50WV K SL |
CK1181AB5L |
|
C5 |
CHIP/C (SMD) 10PF 50WV D CH |
CK1100AB2A |
|
C6 |
CHIP/C (SMD) 10PF 50WV D CH |
CK1100AB2A |
|
C7 |
CHIP/C (SMD) 27PF 50WV J CH |
CK1270AB4A |
|
C8 |
CHIP/C (SMD) 68PF 50WV J CH |
CK1680AB4A |
|
C10 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q1 |
TRANSISTOR(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q2 |
TRANSISTOR(SMD) 2SC3123-TE85L |
TY2SC3123Z |
|
Q3 |
TRANSISTOR(SMD) 2SC3123-TE85L |
TY2SC3123Z |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
D2 |
DIODE (SMD) 1SV217-TP |
ED1V00217Y |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
IC
PIN
|
022-1.O-S(WAKO) |
GZZZ50098Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
