Galaxy DX Radios DX949
Documentation Project
CBTricks.com

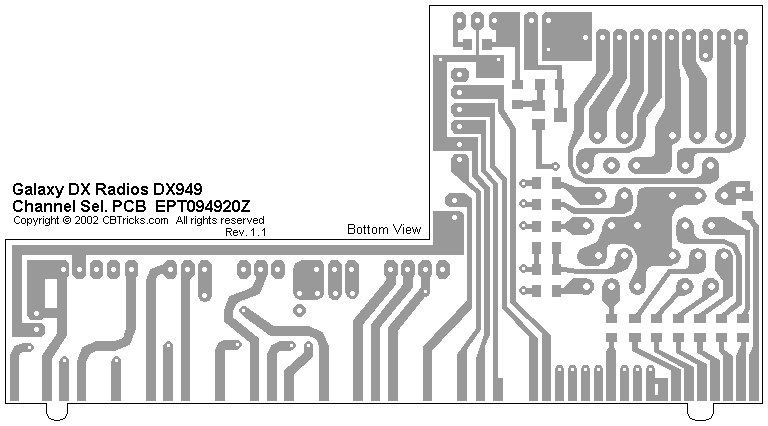

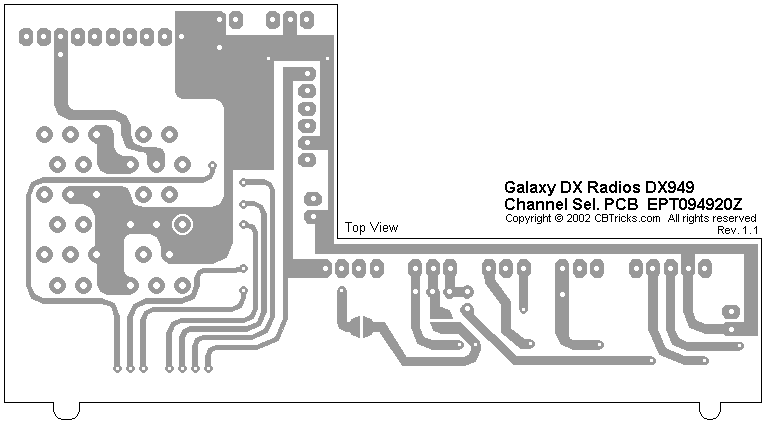

Channel Select PCB EPT094920Z Trace Layout

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
