Galaxy
DX Radios DX949
Documentation Project
CBTricks.com

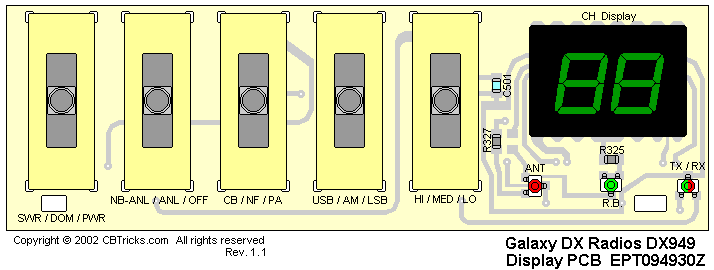

DISPLAY P.C.B. EPT094930Z
Trace
Layout
Ref.
No.
|
Description |
MFR.
Part No.
|
DISPLAY P.C.B. 87.5x28x1.6tmm |
EPT094930Z
|
|
|
DISPLAY P.C.B. Complete with Components |
#MT-145F-P04 |
Ref.
No.
|
Description |
MFR.
Part No.
|
R325 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R327 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
C501 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
Ref.
No.
|
Description |
MFR.
Part No.
|
CH
Display
|
LED DISPLAY GREEN L=15mm |
EX03N40483
|
ANT
|
LED (SMD) RED 4V/25mA |
EX01Y40116
|
R.B
|
LED LAMPS (SMD) KM-23SGC |
EX01Y40117
|
T/R
|
LED LAMPS (SMD) KM-23ESGC |
EX01Y40114
|
Ref.
No.
|
Description |
MFR.
Part No.
|
SLIDE SW |
EWSL31027K
|
|
|
SET SCREW M2.6x0.45Px4 SLIDE SW(14) |
JS052604MN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
