Galaxy
DX Radios DX949
Documentation Project
CBTricks.com
VR

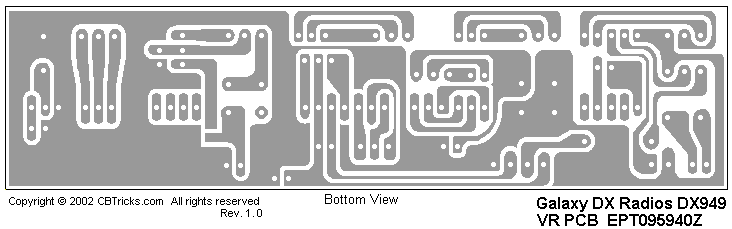

P.C.B. (EPT095940Z) Early Production
|
Ref.
No.
|
Description |
MFR.
Part No.
|
| VR P.C.B. |
EPT095940Z
|
|
|
|
VR P.C.B. Complete with Components |
#MT-145F-P05 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R DTA124ES |
TDTA0124ES |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
VOL/SQ |
VR 50KB/50KA W/SW |
RV50303522 |
|
RF GAIN |
VR 1KB |
RV10203528 |
|
DIMMER/PUSH ON/OFF |
5KB/PUSH SW L=20mm |
RV50203542 |
|
MIC GAIN/PUSH RB |
1KA/PUSH SW L=20mm |
RV10203541 |
|
RF POWER |
VR 5KB |
RV50203525 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
J2 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J4 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J6 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J8 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J11 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J12 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J13 |
PCB CONNECTOR/S 5P PH=2MM |
EX07W48826 |
|
J16 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J17 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
JP1 |
JUMPER WIRE 7x10x7 |
WX01070710 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
ANF/GNF P.C.B. Complete with Components |
#MH-590-P03 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
